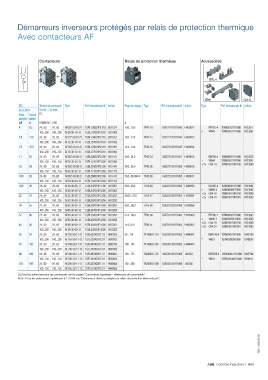

Démarreurs inverseurs protégés par relais de protection thermique

Avec contacteurs AF

Contacteurs Relais de protection thermique Accessoires

+
BER..-4

VEM4 CA4-10
IEC Tension de commande Type Réf. internationale @ Article Plage de réglage Type Réf. internationale @ Article Type Réf. internationale @ Article
AC-3, 400 V Uc min. ... Uc max.
Puiss. Courant (1)
assignée assigné
kW A V 50/60 Hz V DC A
4 8.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 7.60...10.0 TF42-10 1SAZ721201R1043 H439812 BER16-4 1SBN081311R1000 H313077
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 + VEM4 1SBN030111R1000 H313061
5.5 11.5 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 10.0...13.0 TF42-13 1SAZ721201R1045 H439813
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033
7.5 15.5 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 13.0...16.0 TF42-16 1SAZ721201R1047 H439814
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063
11 22 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 20.0...24.0 TF42-24 1SAZ721201R1051 H439815 BER38-4 1SBN082311R1000 H313078
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 + VEM4 1SBN030111R1000 H313061
15 29 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 29.0...35.0 TF42-35 1SAZ721201R1053 H439816 + 2x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123
18.5 35 24...60 20...60 AF38Z-30-00-21 1SBL296001R2100 H311471 35.0...38.0/40.0 TF42-38 1SAZ721201R1055 H439817
100...250 100...250 AF38-30-00-13 1SBL297001R1300 H311153
18.5 35 24...60 20...60 AF40-30-00-11 1SBL347001R1100 H313201 30.0...40.0 TF65-40 1SAZ811201R1003 H448293 BER65-4 1SBN083411R1000 H313094
100...250 100...250 AF40-30-00-13 1SBL347001R1300 H313203 + VM96-4 1SBN033405T1000 H313093
22 41 24...60 20...60 AF52-30-00-11 1SBL367001R1100 H313231 36.00…47.0 TF65-47 1SAZ811201R1004 H448294 + 2x CA4-10 1SBN010110R1010 H313000
H313002
1SBN010110R1001
+ 2x CA4-01
100...250 100...250 AF52-30-00-13 1SBL367001R1300 H313233
30 55 24...60 20...60 AF65-30-00-11 1SBL387001R1100 H313261 50.0…60.0 TF65-60 1SAZ811201R1006 H448296
100...250 100...250 AF65-30-00-13 1SBL387001R1300 H313263
37 66 24...60 20...60 AF80-30-00-11 1SBL397001R1100 H313291 57.0…68.0 TF96-68 1SAZ911201R1003 H448300 BER96-4 1SBN083911R1000 H313095
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293 + VM96-4 1SBN033405T1000 H313093
45 80 24...60 20...60 AF96-30-00-11 1SBL407001R1100 H313321 75.0..87.0 TF96-87 1SAZ911201R1005 H448302 + 2x CA4-10 1SBN010110R1010 H313000
+ 2x CA4-01
H313002
1SBN010110R1001
100...250 100...250 AF96-30-00-13 1SBL407001R1300 H313323
55 97 24...60 20...60 AF116-30-11-11 1SFL427001R1111 H047635 80…110 TF140DU-110 1SAZ431201R1002 H444682 BER140-4 1SFN084211R1000 H047160
100...250 100...250 AF116-30-11-13 1SFL427001R1311 H047637 + VM19 1SFN030300R1000 H049257
75 132 24...60 20...60 AF140-30-11-11 1SFL447001R1111 H047706 100…135 TF140DU-135 1SAZ431201R1003 H444683
100...250 100...250 AF140-30-11-13 1SFL447001R1311 H047694
90 160 24...60 20...60 AF190-30-11-11 1SFL487002R1111 H048041 130…175 TA200DU-175 1SAZ421201R1005 140254 BER205-4 1SFN084811R1000 H047709
100...250 100...250 AF190-30-11-13 1SFL487002R1311 H048043 + VM19 1SFN030300R1000 H049257
110 195 24...60 20...60 AF205-30-11-11 1SFL527002R1111 H048054 150…200 TA200DU-200 1SAZ421201R1006 140255
100...250 100...250 AF205-30-11-13 1SFL527002R1311 H048056
(1) Pour les autres tensions de commande voir les pages "Contacteurs tripolaires - références de commande".
Note : Pour les puissances supérieures à 110 kW voir "Démarreurs directs protégés par relais de protection électroniques".

1SBC101922S0301

ABB Contrôle industriel | 4/61
