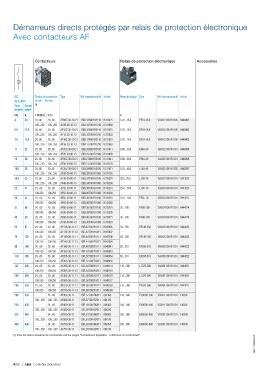

Démarreurs directs protégés par relais de protection électronique

Avec contacteurs AF

Contacteurs Relais de protection électronique Accessoires

IEC Tension de commande Type Réf. internationale @ Article Plage de réglage Type Réf. internationale @ Article
AC-3, 400 V Uc min. ... Uc max.
Puiss. Courant (1)
assignée assigné
kW A V 50/60 Hz V DC A
4 8.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 5.70…18.9 EF19-18.9 1SAX121001R1105 H440402
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003
5.5 11.5 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 5.70…18.9 EF19-18.9 1SAX121001R1105 H440402
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033
7.5 15.5 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 5.70…18.9 EF19-18.9 1SAX121001R1105 H440402
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063
11 22 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 9.00…30.0 EF45-30 1SAX221001R1101 H440396
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093
15 29 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 9.00…30.0 EF45-30 1SAX221001R1101 H440396
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123
18.5 35 24...60 20...60 AF38Z-30-00-21 1SBL296001R2100 H311471 15.0…45.0 EF45-45 1SAX221001R1102 H440397
100...250 100...250 AF38-30-00-13 1SBL297001R1300 H311153
18.5 35 24...60 20...60 AF40-30-00-11 1SBL347001R1100 H313201 25.0...70.0 EF65-70 1SAX331001R1101 H444225
100...250 100...250 AF40-30-00-13 1SBL347001R1300 H313203
22 41 24…60 20…60 AF52-30-00-11 1SBL367001R1100 H313231 25.0…70.0 EF65-70 1SAX331001R1101 H444225
100-250 100-250 AF52-30-00-13 1SBL367001R1300 H313233
30 55 24…60 20…60 AF65-30-00-11 1SBL387001R1100 H313261 25.0…70.0 EF65-70 1SAX331001R1101 H444225
100-250 100-250 AF65-30-00-13 1SBL387001R1300 H313263
37 66 24…60 20…60 AF80-30-00-11 1SBL397001R1100 H313291 36…100 EF96-100 1SAX341001R1101 H444224
100-250 100-250 AF80-30-00-13 1SBL397001R1300 H313293
45 80 24…60 20…60 AF96-30-00-11 1SBL407001R1100 H313321 36…100 EF96-100 1SAX341001R1101 H444224
100-250 100-250 AF96-30-00-13 1SBL407001R1300 H313323
55 97 24…60 20…60 AF116-30-11-11 1SFL427001R1111 H047635 54…150 EF146-150 1SAX351001R1101 H444223
100-250 100-250 AF116-30-11-13 1SFL427001R1311 H047637
75 132 24…60 20…60 AF140-30-11-11 1SFL447001R1111 H047706 54…150 EF146-150 1SAX351001R1101 H444223
100-250 100-250 AF140-30-11-13 1SFL447001R1311 H047694
90 160 24…60 20…60 AF190-30-11-11 1SFL487002R1111 H048041 63…210 EF205-210 1SAX531001R1101 H444222
100-250 100-250 AF190-30-11-13 1SFL487002R1311 H048043
110 195 24…60 20…60 AF205-30-11-11 1SFL527002R1111 H048054 63…210 EF205-210 1SAX531001R1101 H444222
100-250 100-250 AF205-30-11-13 1SFL527002R1311 H048056
132 230 24…60 20…60 AF265-30-11-11 1SFL547002R1111 H048114 115…380 EF370-380 1SAX611001R1101 H444221
100-250 100-250 AF265-30-11-13 1SFL547002R1311 H048118
160 280 24…60 20…60 AF305-30-11-11 1SFL587002R1111 H048170 115…380 EF370-380 1SAX611001R1101 H444221
100-250 100-250 AF305-30-11-13 1SFL587002R1311 H048177
200 350 24…60 20…60 AF370-30-11-11 1SFL607002R1111 H048183 115…380 EF370-380 1SAX611001R1101 H444221
100-250 100-250 AF370-30-11-13 1SFL607002R1311 H048189
200 350 - 24…60 AF400-30-11 1SFL577001R6811 854168 150…500 E500DU-500 1SAX711001R1101 140342
100…250 100…250 AF400-30-11 1SFL577001R7011 854170
250 430 - 24…60 AF460-30-11 1SFL597001R6811 854368 150…500 E500DU-500 1SAX711001R1101 140342
100…250 100…250 AF460-30-11 1SFL597001R7011 854370
315 540 - 24…60 AF580-30-11 1SFL617001R6811 854568 250…800 E800DU-800 1SAX811001R1101 140343
100…250 100…250 AF580-30-11 1SFL617001R7011 854570
400 690 - 24…60 AF750-30-11 1SFL637001R6811 854768 250…800 E800DU-800 1SAX811001R1101 140343
100…250 100…250 AF750-30-11 1SFL637001R7011 854770
(1) Pour les autres tensions de commande voir les pages "Contacteurs tripolaires - références de commande".
1SBC101948S0301

4/62 | ABB Contrôle industriel
