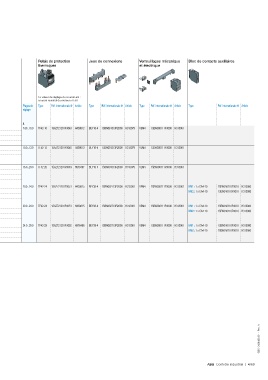

Contacteur de ligne KM1 Contacteur triangle KM3 Contacteur étoile KM2 Relais de protection Jeux de connexions Verrouillages mécanique Bloc de contacts auxiliaires
thermiques et électrique

L Y

La valeur de réglage du courant est :
courant nominal du moteur x 0.58
IEC Tension de commande Type Réf. internationale @ Article Type Réf. internationale @ Article Type Réf. internationale @ Article Plages de Type Réf. internationale @ Article Type Réf. internationale @ Article Type Réf. internationale @ Article Type Réf. internationale @ Article
AC-3, 400 V Uc min. ... Uc max. réglage
Puiss. Courant (1)
assignée assigné
kW A V 50/60 Hz V DC A
7.5 15.5 24...60 20...60 AF09Z-30-10-21 1SBL136001R2110 H311321 AF09Z-30-10-21 1SBL136001R2110 H311321 AF09Z-30-10-21 1SBL136001R2110 H311321 7.60...10.0 TF42-10 1SAZ721201R1043 H439812 BEY16-4 1SBN081313R2000 H313079 VEM4 1SBN030111R1000 H313061
48...130 48...130 AF09-30-10-12 1SBL137001R1210 H311002 AF09-30-10-12 1SBL137001R1210 H311002 AF09-30-10-12 1SBL137001R1210 H311002
100...250 100...250 AF09-30-10-13 1SBL137001R1310 H311003 AF09-30-10-13 1SBL137001R1310 H311003 AF09-30-10-13 1SBL137001R1310 H311003
250...500 250...500 AF09-30-10-14 1SBL137001R1410 H311004 AF09-30-10-14 1SBL137001R1410 H311004 AF09-30-10-14 1SBL137001R1410 H311004
11 22 24...60 20...60 AF12Z-30-10-21 1SBL156001R2110 H311351 AF12Z-30-10-21 1SBL156001R2110 H311351 AF09Z-30-10-21 1SBL136001R2110 H311321 10.0...13.0 TF42-13 1SAZ721201R1045 H439813 BEY16-4 1SBN081313R2000 H313079 VEM4 1SBN030111R1000 H313061
48...130 48...130 AF12-30-10-12 1SBL157001R1210 H311032 AF12-30-10-12 1SBL157001R1210 H311032 AF09-30-10-12 1SBL137001R1210 H311002
100...250 100...250 AF12-30-10-13 1SBL157001R1310 H311033 AF12-30-10-13 1SBL157001R1310 H311033 AF09-30-10-13 1SBL137001R1310 H311003
250...500 250...500 AF12-30-10-14 1SBL157001R1410 H311034 AF12-30-10-14 1SBL157001R1410 H311034 AF09-30-10-14 1SBL137001R1410 H311004
15 29 24...60 20...60 AF16Z-30-10-21 1SBL176001R2110 H311381 AF16Z-30-10-21 1SBL176001R2110 H311381 AF09Z-30-10-21 1SBL136001R2110 H311321 16.0...20.0 TF42-20 1SAZ721201R1049 H976497 BEY16-4 1SBN081313R2000 H313079 VEM4 1SBN030111R1000 H313061
48...130 48...130 AF16-30-10-12 1SBL177001R1210 H311062 AF16-30-10-12 1SBL177001R1210 H311062 AF09-30-10-12 1SBL137001R1210 H311002
100...250 100...250 AF16-30-10-13 1SBL177001R1310 H311063 AF16-30-10-13 1SBL177001R1310 H311063 AF09-30-10-13 1SBL137001R1310 H311003
250...500 250...500 AF16-30-10-14 1SBL177001R1410 H311064 AF16-30-10-14 1SBL177001R1410 H311064 AF09-30-10-14 1SBL137001R1410 H311004
18.5 35 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 AF26Z-30-00-21 1SBL236001R2100 H311411 AF26Z-30-00-21 1SBL236001R2100 H311411 20.0...24.0 TF42-24 1SAZ721201R1051 H439815 BEY38-4 1SBN082713R2000 H313081 VEM4 1SBN030111R1000 H313061 KM1 : 1 x CA4-10 1SBN010110R1010 H313000
48...130 48...130 AF26-30-00-12 1SBL237001R1200 H311092 AF26-30-00-12 1SBL237001R1200 H311092 AF26-30-00-12 1SBL237001R1200 H311092 KM2 : 1 x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 AF26-30-00-13 1SBL237001R1300 H311093 AF26-30-00-13 1SBL237001R1300 H311093
250...500 250...500 AF26-30-00-14 1SBL237001R1400 H311094 AF26-30-00-14 1SBL237001R1400 H311094 AF26-30-00-14 1SBL237001R1400 H311094
22 41 24...60 20...60 AF26Z-30-00-21 1SBL236001R2100 H311411 AF26Z-30-00-21 1SBL236001R2100 H311411 AF26Z-30-00-21 1SBL236001R2100 H311411 20.0...24.0 TF42-24 1SAZ721201R1051 H439815 BEY38-4 1SBN082713R2000 H313081 VEM4 1SBN030111R1000 H313061 KM1 : 1 x CA4-10 1SBN010110R1010 H313000
48...130 48...130 AF26-30-00-12 1SBL237001R1200 H311092 AF26-30-00-12 1SBL237001R1200 H311092 AF26-30-00-12 1SBL237001R1200 H311092 KM2 : 1 x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF26-30-00-13 1SBL237001R1300 H311093 AF26-30-00-13 1SBL237001R1300 H311093 AF26-30-00-13 1SBL237001R1300 H311093
250...500 250...500 AF26-30-00-14 1SBL237001R1400 H311094 AF26-30-00-14 1SBL237001R1400 H311094 AF26-30-00-14 1SBL237001R1400 H311094
25 47 24...60 20...60 AF30Z-30-00-21 1SBL276001R2100 H311441 AF30Z-30-00-21 1SBL276001R2100 H311441 AF26Z-30-00-21 1SBL236001R2100 H311411 24.0...29.0 TF42-29 1SAZ721201R1052 H976498 BEY38-4 1SBN082713R2000 H313081 VEM4 1SBN030111R1000 H313061 KM1 : 1 x CA4-10 1SBN010110R1010 H313000
48...130 48...130 AF30-30-00-12 1SBL277001R1200 H311122 AF30-30-00-12 1SBL277001R1200 H311122 AF26-30-00-12 1SBL237001R1200 H311092 KM2 : 1 x CA4-10 1SBN010110R1010 H313000
100...250 100...250 AF30-30-00-13 1SBL277001R1300 H311123 AF30-30-00-13 1SBL277001R1300 H311123 AF26-30-00-13 1SBL237001R1300 H311093
250...500 250...500 AF30-30-00-14 1SBL277001R1400 H311124 AF30-30-00-14 1SBL277001R1400 H311124 AF26-30-00-14 1SBL237001R1400 H311094
(1) Pour les autres tensions de commande, voir les pages "Contacteurs tripolaires - Références de commande".
Note : un temporisateur à l'enclenchement sans temps de pause (ex. : CT-ERS.21 1SVR 630 100 R0300) est suffisant pour compter à rebours le temps de démarrage programmé pendant la "connexion étoile".

1SBC101264S0301 - Rev. A

ABB Contrôle industriel | 4/69
