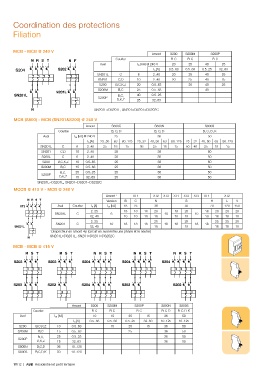

Coordination des protections
Filiation

MCB - MCB @ 240 V
Amont S200 S200M S200P
N R S T N F Courbe B-C B-C B-C
Aval I cu [kA] @ 240 V 20 25 40 25
XT3
S204 S202 I n [A] 0.5..63 0.5..63 0.5..25 32..63
SN201L C 6 2..40 20 25 40 25
SN201 C,D 10 2..40 20 25 40 25
S200 B,C,K,Z 20 0.5..63 25 40 25
S200M B,C 25 0.5..63 40
SN201L
SN201L B,C, 40 0.5..25
S200P
D,K,Z 25 32..63
N SN201L=DS201L, SN201=DS201=DS202C
MCB (S800) - MCB (SN201&S200) @ 240 V
Amont S800C S800N S800S
Courbe B, C, D B, C, D B, C, D, K
Aval I cu [kA] @ 240 V 25 36 50
I n [A] 25..50 63 80..125 25, 32 40, 50 63 80..125 25 32 40, 50 63 80..125
SN201L C 6 2..40 25 18 15 36 25 18 15 50 40 25 18 15
SN201 C,D 10 2..40 25 36 50
S200L C 6 2..40 25 36 50
S200 B,C,K,Z 10 0.5..63 25 36 50
S200M B,C 15 0.5..63 25 36 50
B,C, 25 0.5..25 25 36 50
S200P
D,K,Z 15 32..63 25 36 50
SN201L=DS201L, SN201=DS201=DS202C
MCCB @ 415 V - MCB @ 240 V
Amont * XT1 XT2 XT3 XT1 XT2 XT3 XT1 XT2
N R S T Version B C N S H L V
XT3 Aval Courbe I n [A] I cu [kA] 18 25 36 50 70 120 150
2..25 18 18 18 20 18 20 18 20 20 20
SN201L C 6 10 10
32, 40 10 10 10 18 10 18 10 18 18 18
2..25 25 25 25 25 25
SN201 C 10 18 18 18 18 18 18 18
SN201L 32, 40 18 18 18 18 18
* Disjoncteur en amont 4p (circuit en aval entre une phase et le neutre)
SN201L=DS201L, SN201=DS201=DS202C
N
MCB - MCB @ 415 V
R S T R S T N R S T N R S T N R S T
S203 S203 S204 S204 S204

S203 S202 S204 S202 S202

Amont S200 S200M S200P S800N S800S
Courbe B-C B-C B-C B-C-D B-C-D-K
Aval I cu [kA] 10 15 25 15 36 50
I n [A] 0.5..63 0.5..63 0.5..25 32..63 10..125 10..125
S200 B,C,K,Z 10 0.5..63 15 25 15 36 50
S200M B,C 15 0.5..63 25 36 50
B,C, 25 0.5..25 36 50
S200P
D,K,Z 15 32..63 36 50
S800N B,C,D 36 10..125
S800S B,C,D,K 50 10..125
