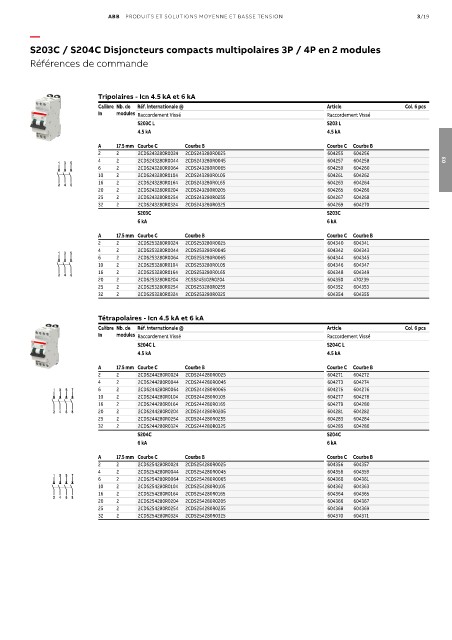

Page 217 - Les indispensables 2021

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 3/19

—
S203C / S204C Disjoncteurs compacts multipolaires 3P / 4P en 2 modules

Références de commande

Tripolaires - Icn 4.5 kA et 6 kA
Calibre Nb. de Réf. internationale @ Article Col. 6 pcs
In modules Raccordement Vissé Raccordement Vissé
S203C L S203 L
4.5 kA 4.5 kA
A 17.5 mm Courbe C Courbe B Courbe C Courbe B
2 2 2CDS243280R0024 2CDS243280R0025 604255 604256
4 2 2CDS243280R0044 2CDS243280R0045 604257 604258 03
6 2 2CDS243280R0064 2CDS243280R0065 604259 604260
10 2 2CDS243280R0104 2CDS243280R0105 604261 604262
16 2 2CDS243280R0164 2CDS243280R0165 604263 604264
20 2 2CDS243280R0204 2CDS243280R0205 604265 604266
25 2 2CDS243280R0254 2CDS243280R0255 604267 604268
32 2 2CDS243280R0324 2CDS243280R0325 604269 604270
S203C S203C
6 kA 6 kA
A 17.5 mm Courbe C Courbe B Courbe C Courbe B
2 2 2CDS253280R0024 2CDS253280R0025 604340 604341
4 2 2CDS253280R0044 2CDS253280R0045 604342 604343
6 2 2CDS253280R0064 2CDS253280R0065 604344 604345
10 2 2CDS253280R0104 2CDS253280R0105 604346 604347
16 2 2CDS253280R0164 2CDS253280R0165 604348 604349
20 2 2CDS253280R0204 2CSS245102R0204 604350 470239
25 2 2CDS253280R0254 2CDS253280R0255 604352 604353
32 2 2CDS253280R0324 2CDS253280R0325 604354 604355

Tétrapolaires - Icn 4.5 kA et 6 kA
Calibre Nb. de Réf. internationale @ Article Col. 6 pcs
In modules Raccordement Vissé Raccordement Vissé
S204C L S204C L
4.5 kA 4.5 kA
A 17.5 mm Courbe C Courbe B Courbe C Courbe B
2 2 2CDS244280R0024 2CDS244280R0025 604271 604272
4 2 2CDS244280R0044 2CDS244280R0045 604273 604274
6 2 2CDS244280R0064 2CDS244280R0065 604275 604276
10 2 2CDS244280R0104 2CDS244280R0105 604277 604278
16 2 2CDS244280R0164 2CDS244280R0165 604279 604280
20 2 2CDS244280R0204 2CDS244280R0205 604281 604282
25 2 2CDS244280R0254 2CDS244280R0255 604283 604284
32 2 2CDS244280R0324 2CDS244280R0325 604285 604286
S204C S204C
6 kA 6 kA
A 17.5 mm Courbe C Courbe B Courbe C Courbe B
2 2 2CDS254280R0024 2CDS254280R0025 604356 604357
4 2 2CDS254280R0044 2CDS254280R0045 604358 604359
6 2 2CDS254280R0064 2CDS254280R0065 604360 604361
10 2 2CDS254280R0104 2CDS254280R0105 604362 604363
16 2 2CDS254280R0164 2CDS254280R0165 604364 604365
20 2 2CDS254280R0204 2CDS254280R0205 604366 604367
25 2 2CDS254280R0254 2CDS254280R0255 604368 604369
32 2 2CDS254280R0324 2CDS254280R0325 604370 604371
