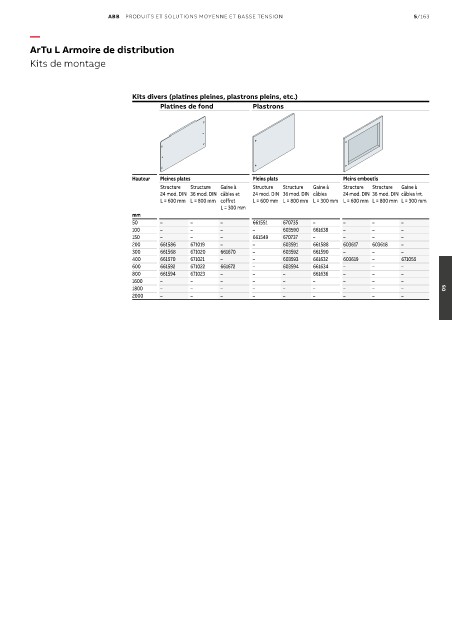

Page 841 - Les indispensables 2021

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 5/163

—
ArTu L Armoire de distribution

Kits de montage

Kits divers (platines pleines, plastrons pleins, etc.)
Platines de fond Plastrons

Hauteur Pleines plates Pleins plats Pleins emboutis
Structure Structure Gaine à Structure Structure Gaine à Structure Structure Gaine à
24 mod. DIN 36 mod. DIN câbles et 24 mod. DIN 36 mod. DIN câbles 24 mod. DIN 36 mod. DIN câbles int.
L = 600 mm L = 800 mm coffret L = 600 mm L = 800 mm L = 300 mm L = 600 mm L = 800 mm L = 300 mm
L = 300 mm
mm
50 – – – 661551 670735 – – – –
100 – – – – 603590 661638 – – –
150 – – – 661549 670737 – – – –
200 661586 671019 – – 603591 661588 603617 603618 –
300 661568 671020 661670 – 603592 661590 – – –
400 661570 671021 – – 603593 661632 603619 – 671055
600 661592 671022 661672 – 603594 661634 – – –
800 661594 671023 – – – 661636 – – –
1600 – – – – – – – – –
1800 – – – – – – – – – 05
2000 – – – – – – – – –
