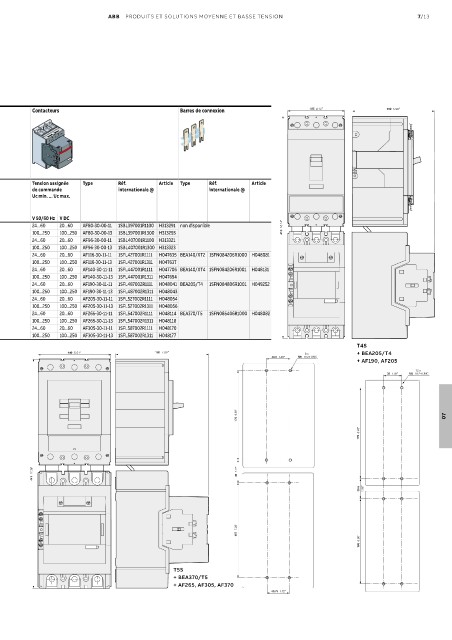

P. 971
ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 7/13
Coordination de type 1 ou 2, AC-3, 50 kA, 400 V, 50/60 Hz, démarrage normal 10E
Disjoncteurs boîtiers moulés Contacteurs Barres de connexion 105 4.13" 105 4.13" 152 5.98" 152 5.98"
IEC Courant de Réglage Bloc de coupure Déclencheur Tension assignée Type Réf. Article Type Réf. Article
AC-3, 400 V déclenchement thermique Type Réf. Article Type Réf. Article de commande internationale @ internationale @
magnétique max. internationale @ internationale @ Uc min. ... Uc max.
autorisé
Puissance Courant
assignée assigné
kW A A V 50/60 Hz V DC
37 66 1000 80 XT2S 160 1SDA068164R1 068164 + Ekip M-LIU 100* 1SDA067354R1 067354 24...60 20...60 AF80-30-00-11 1SBL397001R1100 H313291 non disponible 410 16.14" 410 16.14"
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293
45 80 1200 96 XT2S 160 1SDA068164R1 068164 + Ekip M-LIU 100* 1SDA067354R1 067354 24...60 20...60 AF96-30-00-11 1SBL407001R1100 H313321
100...250 100...250 AF96-30-00-13 1SBL407001R1300 H313323
55 97 1440 116 XT2S 160** 1SDA068164R1 068164 + Ekip M-LIU 160** 1SDA067355R1 067355 24...60 20...60 AF116-30-11-11 1SFL427001R1111 H047635 BEA140/XT2 1SFN084206R1000 H048081
100...250 100...250 AF116-30-11-13 1SFL427001R1311 H047637
75 132 1920 140 XT4S 160 1SDA068290R1 068290 + Ekip M-LIU 160* 1SDA068031R1 068031 24...60 20...60 AF140-30-11-11 1SFL447001R1111 H047706 BEA140/XT4 1SFN084206R1001 H048131
100...250 100...250 AF140-30-11-13 1SFL447001R1311 H047694
90 160 2400 190 T4S 250 M-LRIU 200 1SDA054527R1 054527 Inclus - - 24...60 20...60 AF190-30-11-11 1SFL487002R1111 H048041 BEA205/T4 1SFN084806R1001 H049252
100...250 100...250 AF190-30-11-13 1SFL487002R1311 H048043
110 195 2880 205 T5S 400 M-LRIU 320 1SDA054553R1 054553 Inclus - - 24...60 20...60 AF205-30-11-11 1SFL527002R1111 H048054
100...250 100...250 AF205-30-11-13 1SFL527002R1311 H048056
132 230 3600 265 T5S 630 M-LRIU 400 1SDA064158R1 064158 Inclus - - 24...60 20...60 AF265-30-11-11 1SFL547002R1111 H048114 BEA370/T5 1SFN085406R1000 H048082
100...250 100...250 AF265-30-11-13 1SFL547002R1311 H048118
160 280 4400 305 T5S 630 M-LRIU 400 1SDA064158R1 064158 Inclus - - 24...60 20...60 AF305-30-11-11 1SFL587002R1111 H048170
100...250 100...250 AF305-30-11-13 1SFL587002R1311 H048177
T4S
140 5.51" 140 5.51" 180 7.09" 180 7.09" 8 x + BEA205/T4
46.5 1.83" M5 10-24 UNC
+ AF190, AF205
12 x
35 1.39" M5 10-24 UNC
176 6.93" 07
176 6.93"
441 17.36" 441 17.36" 45 1.77"
39.5 1.56"
187 7.36"
165 6.50"
T5S
+ BEA370/T5
+ AF265, AF305, AF370
43.75 1.72"
