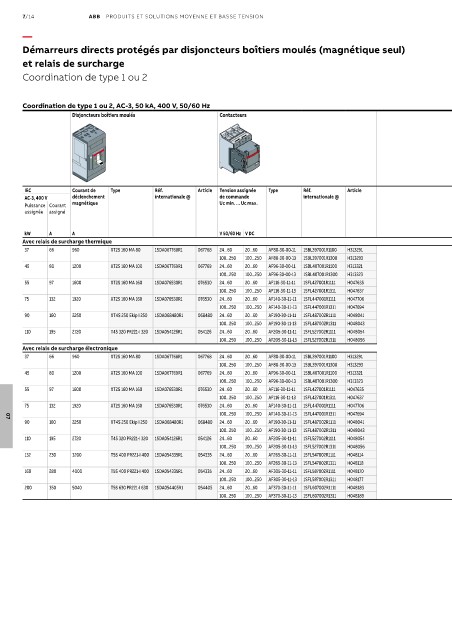

Page 972 - Les indispensables 2021
P. 972
7/14 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION
—
Démarreurs directs protégés par disjoncteurs boîtiers moulés (magnétique seul)
et relais de surcharge
Coordination de type 1 ou 2
Coordination de type 1 ou 2, AC-3, 50 kA, 400 V, 50/60 Hz
Disjoncteurs boîtiers moulés Contacteurs Relais de surcharge Barres de connexion
IEC Courant de Type Réf. Article Tension assignée Type Réf. Article Plages Réglage Type Réf. Article Type Réf. Article
AC-3, 400 V déclenchement internationale @ de commande internationale @ de thermique internationale @ internationale @
Puissance Courant magnétique Uc min. ... Uc max. réglage max. autorisé
assignée assigné
kW A A V 50/60 Hz V DC A A
Avec relais de surcharge thermique
37 66 960 XT2S 160 MA 80 1SDA067768R1 067768 24...60 20...60 AF80-30-00-11 1SBL397001R1100 H313291 57...68 68 TF96-68 1SAZ911201R1003 H448300 non disponible
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293
45 80 1200 XT2S 160 MA 100 1SDA067769R1 067769 24...60 20...60 AF96-30-00-11 1SBL407001R1100 H313321 75...87 87 TF96-87 1SAZ911201R1005 H448302
100...250 100...250 AF96-30-00-13 1SBL407001R1300 H313323
55 97 1600 XT2S 160 MA 160 1SDA076530R1 076530 24...60 20...60 AF116-30-11-11 1SFL427001R1111 H047635 80...110 110 TF140DU-110 1SAZ431201R1002 H444682 BEA140/XT2 1SFN084206R1000 H048081
100...250 100...250 AF116-30-11-13 1SFL427001R1311 H047637
75 132 1920 XT2S 160 MA 160 1SDA076530R1 076530 24...60 20...60 AF140-30-11-11 1SFL447001R1111 H047706 110...142 140 TA200DU-142 1SAZ431201R1004 H444684 BEA140/XT2 1SFN084206R1000 H048081
100...250 100...250 AF140-30-11-13 1SFL447001R1311 H047694
90 160 2250 XT4S 250 Ekip I 250 1SDA068480R1 068480 24...60 20...60 AF190-30-11-11 1SFL487002R1111 H048041 130...175 175 TF140DU-175 1SAZ421201R1005 140254 BEA205/XT4 1SFN084806R1000 H048130
100...250 100...250 AF190-30-11-13 1SFL487002R1311 H048043
110 195 2720 T4S 320 PR221-I 320 1SDA054126R1 054126 24...60 20...60 AF205-30-11-11 1SFL527002R1111 H048054 155...200 200 TA200DU-200 1SAZ421201R1006 140255 BEA205/T4 1SFN084806R1001 H049252
100...250 100...250 AF205-30-11-13 1SFL527002R1311 H048056
Avec relais de surcharge électronique
37 66 960 XT2S 160 MA 80 1SDA067768R1 067768 24...60 20...60 AF80-30-00-11 1SBL397001R1100 H313291 36...100 80 EF96-100 1SAX341001R1101 H444224 non disponible
100...250 100...250 AF80-30-00-13 1SBL397001R1300 H313293
45 80 1200 XT2S 160 MA 100 1SDA067769R1 067769 24...60 20...60 AF96-30-00-11 1SBL407001R1100 H313321 36...100 96 EF96-100 1SAX341001R1101 H444224
100...250 100...250 AF96-30-00-13 1SBL407001R1300 H313323
55 97 1600 XT2S 160 MA 160 1SDA076530R1 076530 24...60 20...60 AF116-30-11-11 1SFL427001R1111 H047635 54...150 116 EF146-150 1SAX351001R1101 H444223 BEA140/XT2 1SFN084206R1000 H048081
100...250 100...250 AF116-30-11-13 1SFL427001R1311 H047637
75 132 1920 XT2S 160 MA 160 1SDA076530R1 076530 24...60 20...60 AF140-30-11-11 1SFL447001R1111 H047706 54...150 140 EF146-150 1SAX351001R1101 H444223 BEA140/XT2 1SFN084206R1000 H048081
100...250 100...250 AF140-30-11-13 1SFL447001R1311 H047694
07
90 160 2250 XT4S 250 Ekip I 250 1SDA068480R1 068480 24...60 20...60 AF190-30-11-11 1SFL487002R1111 H048041 63...210 190 EF205-210 1SAX351001R1101 H444223 BEA205/XT4 1SFN084806R1000 H048130
100...250 100...250 AF190-30-11-13 1SFL487002R1311 H048043
110 195 2720 T4S 320 PR221-I 320 1SDA054126R1 054126 24...60 20...60 AF205-30-11-11 1SFL527002R1111 H048054 63...210 205 EF205-210 1SAX351001R1101 H444223 BEA205/T4 1SFN084806R1001 H049252
100...250 100...250 AF205-30-11-13 1SFL527002R1311 H048056
132 230 3200 T5S 400 PR221-I 400 1SDA054335R1 054335 24...60 20...60 AF265-30-11-11 1SFL547002R1111 H048114 115...380 265 EF370-380 1SAX611001R1101 H444221 BEA205/T5 1SFN085406R1000 H048082
100...250 100...250 AF265-30-11-13 1SFL547002R1311 H048118
160 280 4000 T5S 400 PR221-I 400 1SDA054335R1 054335 24...60 20...60 AF305-30-11-11 1SFL587002R1111 H048170 115...380 305 EF370-380 1SAX611001R1101 H444221 BEA205/T5 1SFN085406R1000 H048082
100...250 100...250 AF305-30-11-13 1SFL587002R1311 H048177
200 350 5040 T5S 630 PR221-I 630 1SDA054405R1 054405 24...60 20...60 AF370-30-11-11 1SFL607002R1111 H048183 115...380 350 EF370-380 1SAX611001R1101 H444221 BEA205/T5 1SFN085406R1000 H048082
100...250 100...250 AF370-30-11-13 1SFL607002R1311 H048189
