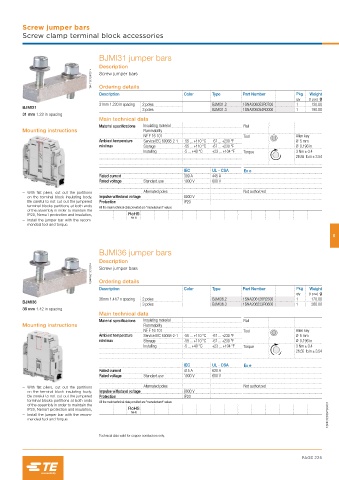

Page 233 - Entrelec Terminal Blocks Master Catalog

Screw jumper bars
Screw clamp terminal block accessories

BJMI31 jumper bars
Description
1SNK160100F0014 Screw jumper bars

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
31mm 1.220 in spacing 2 poles BJMI31.2 1SNA206053R0700 1 120.00
BJMI31
3 poles BJMI31.3 1SNA206054R0000 1 190.00
31 mm 1.22 in spacing
Main technical data
Material specifications Insulating material Rail
Mounting instructions Flammability
NF F 16 101 Tool Allen key
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 5 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.196 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 3 Nm ± 0.4
26.55 lb.in ± 3.54

IEC UL - CSA Ex e
Rated current 309 A 445 A
Rated voltage Standard use 1000 V 600 V

– With flat pliers, cut out the partitions Alternated poles Not authorized
on the terminal block insulating body. Impulse withstand voltage 8000 V
Be careful to not cut out the jumpered Protection IP20
terminal blocks partitions at both ends All the main technical data provided are "manufacturer" values
of the assembly in order to maintain the
IP20, Nema1 protection and insulation,
RoHS
– Install the jumper bar with the recom-
mended tool and torque.
5

BJMI36 jumper bars
Description
1SNK160100F0014 Screw jumper bars

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
36mm 1.41i7 n spacing 2 poles BJMI36.2 1SNA206126R2500 1 170.00
BJMI36
3 poles BJMI36.3 1SNA206223R0600 1 260.00
36 mm 1.42 in spacing
Main technical data
Material specifications Insulating material Rail
Mounting instructions Flammability
NF F 16 101 Tool Allen key
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 5 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.196 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 3 Nm ± 0.4
26.55 lb.in ± 3.54

IEC UL - CSA Ex e
Rated current 415 A 620 A
Rated voltage Standard use 1000 V 600 V
– With flat pliers, cut out the partitions Alternated poles Not authorized
on the terminal block insulating body. Impulse withstand voltage 8000 V
Be careful to not cut out the jumpered Protection IP20
terminal blocks partitions at both ends
All the main technical data provided are "manufacturer" values
of the assembly in order to maintain the
IP20, Nema1 protection and insulation,
RoHS
– Install the jumper bar with the recom- 1SNK160097S0201
mended tool and torque.

Technical data valid for copper conductors only.
