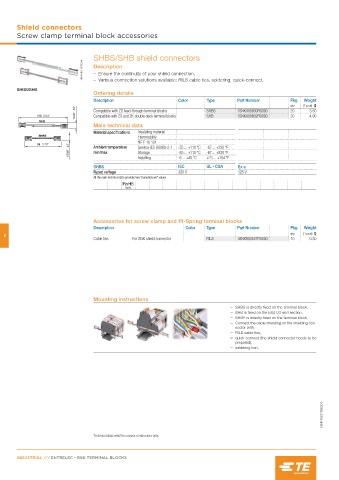

Shield connectors
Screw clamp terminal block accessories

SHBS/SHB shield connectors
1SNK160149F0014 Description

– Ensure the continuity of your shield connection,

SHBS/SHB – Various connection solutions available: RILS cable ties, soldering, quick-connect.
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
13.67 .54" Compatible with ZS feed-through terminal blocks SHBS 1SNK900600R0000 20 3.50
128 5.04" Compatible with ZS and ZK double deck terminal blocks SHB 1SNK900602R0000 20 4.90
SHB
Main technical data
Material specifications Insulating material
SHBS Flammability
NF F 16 101
94 3.70" Ambient temperature
10.87 .43" min/max Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
-55 ... +110 °C
-67 ... +230 °F
Storage
Installing -5 ... +40 °C +23 ... +104 °F
SHBS IEC UL - CSA Ex e
Rated voltage 320 V 125 V
All the main technical data provided are "manufacturer" values
RoHS

Accessories for screw clamp and PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight
5 qty (1 pce) g
Cable ties For SNK shield connector RILS 1SNK900627R0000 10 0.30

Mounting instructions
– SHBS is directly fixed on the terminal block,
– SHB is fixed on the ES4-D2 end section,
– SHBP is directly fixed on the terminal block,
– Connect the cable shielding on the shielding con-
nector with:
– RILS cable ties,
– quick-connect (the shield connector needs to be
prepared),
– soldering iron.

1SNK160079S0201

Technical data valid for copper conductors only.
