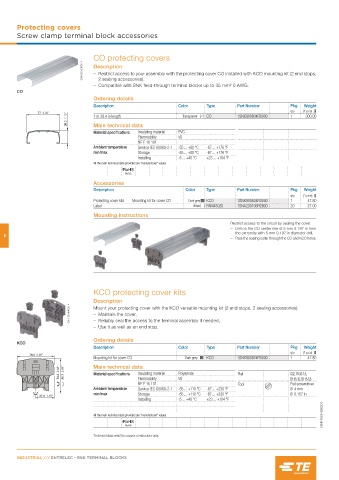

Page 238 - Entrelec Terminal Blocks Master Catalog

Protecting covers
Screw clamp terminal block accessories

CO protecting covers
1SNK160110F0014 Description

– Restrict access to your assembly with the protecting cover CO installed with KCO mounting kit (2 end stops,
2 sealing accessories),
– Compatible with SNK feed-through terminal blocks up to 35 mm² 0 AWG.
CO
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
77 3.03" 1 m 39.4 in length Transparent CO 1SNK900604R0000 1 300.00
30.2 1.19" Main technical data

Material specifications Insulating material PVC
Flammability V0
NF F 16 101
Ambient temperature Service IEC 60068-2-1 -55 ... +80 °C -67 ... +176 °F
min/max Storage -55 ... +80 °C -67 ... +176 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values
RoHS
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Protecting cover kits Mounting kit for cover CO Dark grey KCO 1SNK900624R0000 1 47.80
Label White PAM43020 1SNA235106R2600 20 27.00
Mounting instructions
Restrict access to the circuit by sealing the cover:
– Drill on the CO center line at 5 mm 0.197 in from
the extremity with 5 mm 0.197 in diameter drill,
5
– Pass the sealing collar through the CO and KCO holes.

KCO protecting cover kits

Description
1SNK160144F0014 Mount your protecting cover with the KCO versatile mounting kit (2 end stops, 2 sealing accessories):
– Maintain the cover,
– Reliably seal the access to the terminal assembly if needed,
– Use it as well as an end stop.

Ordering details
KCO
Description Color Type Part Number Pkg Weight
qty (1 pce) g
74.4 2.93"
Mounting kit for cover CO Dark grey KCO 1SNK900624R0000 1 47.80
73.2 2.88" 65.7 2.59" Main technical data Polyamide Rail G32, TH 35-7.5,
Insulating material
Material specifications
Flammability
NF F 16 101 V0 Tool TH 35-15, TH 15-5.5
Flat screwdriver
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 4 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.157 in
37.2 1.46"
Installing -5 ... +40 °C +23 ... +104 °F

All the main technical data provided are "manufacturer" values 1SNK160045S0201
RoHS

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - SNK TERMINAL BLOCKS
