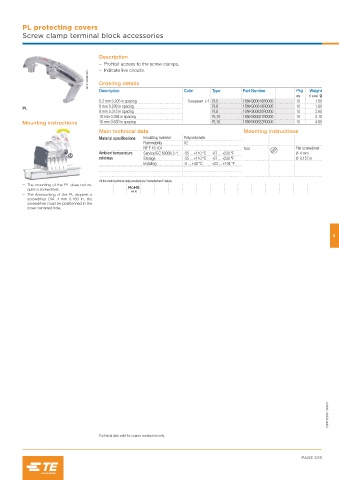

Page 237 - Entrelec Terminal Blocks Master Catalog

PL protecting covers
Screw clamp terminal block accessories

Description
– Prohibit access to the screw clamps,
– Indicate live circuits.
1SNK160096F0014 Ordering details

Description Color Type Part Number Pkg Weight
qty (1 pce) g
5.2 mm 0.205 in spacing Transparent PL5 1SNK900618R0000 10 1.50
6 mm 0.236 in spacing PL6 1SNK900619R0000 10 1.80
PL
8 mm 0.315 in spacing PL8 1SNK900620R0000 10 2.60
10 mm 0.394 in spacing PL10 1SNK900621R0000 10 3.10
Mounting instructions 16 mm 0.630 in spacing PL16 1SNK900622R0000 10 4.60
Main technical data Mounting instructions
Material specifications Insulating material Polycarbonate
Flammability V2
NF F 16 101 Tool Flat screwdriver
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 4 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.157 in
Installing -5 ... +40 °C +23 ... +104 °F

All the main technical data provided are "manufacturer" values
– The mounting of the PL does not re-
quire a screwdriver,
RoHS
– The dismounting of the PL requires a
screwdriver DIA .4 mm 0.160 in, the
screwdriver must be positionned in the
cover centered hole.

5

1SNK160021S0201

Technical data valid for copper conductors only.
