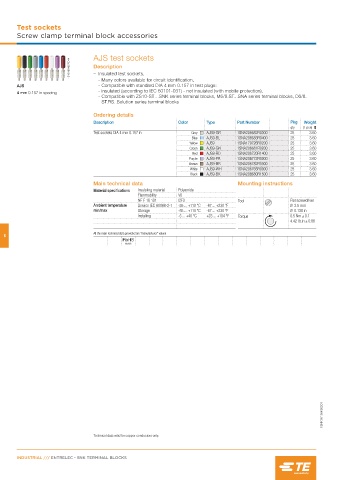

Page 240 - Entrelec Terminal Blocks Master Catalog

Test sockets
Screw clamp terminal block accessories

AJS test sockets
1SNC160482F0014 Description

– Insulated test sockets,
- Many colors available for circuit identification,
AJS - Compatible with standard DIA 4 mm 0.157 in test plugs:
- insulated (according to IEC 60101-031) - not insulated (with mobile protection),
4 mm 0.157 in spacing
- Compatible with ZS10-ST…SNK series terminal blocks, M6/8.ST...SNA series terminal blocks, D6/8.
ST.RS..Solution series terminal blocks
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Test sockets DIA 4 mm 0.157 in Grey AJS9-GR 1SNA206682R0300 25 3.60
Blue AJS9-BL 1SNA206683R0400 25 3.60
Yellow AJS9 1SNA179726R0200 25 3.60
Green AJS9-GN 1SNA206681R0200 25 3.60
Red AJS9-RD 1SNA206720R1400 25 3.60
Purple AJS9-PR 1SNA206772R0000 25 3.60
Brown AJS9-BR 1SNA206782R0000 25 3.60
White AJS9-WH 1SNA206765R0000 25 3.60
Black AJS9-BK 1SNA206680R1500 25 3.60
Main technical data Mounting instructions
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F3 Tool Flat screwdriver
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F Ø 3.5 mm
min/max Storage -55 ... +110 °C -67 ... +230 °F Ø 0.138 in
Installing -5 ... +40 °C +23 ... +104 °F Torque 0.5 Nm ± 0.1
4.42 lb.in ± 0.88

5 All the main technical data provided are "manufacturer" values
RoHS

1SNK161064S0201

Technical data valid for copper conductors only.
