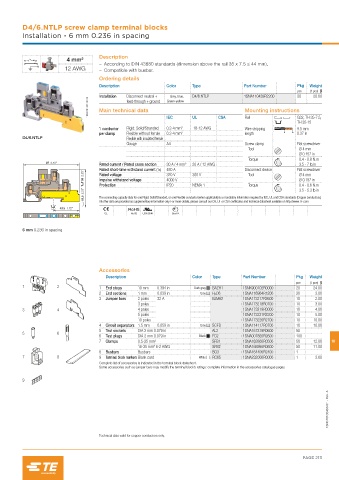

Page 505 - Entrelec Terminal Blocks Master Catalog

D4/6.NTLP screw clamp terminal blocks
Installation - 6 mm 0.236 in spacing

Description
N 4 mm²
– According to DIN 43880 standards (dimension above the rail 35 x 7.5 ≤ 44 mm),
12 AWG – Compatible with busbar.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Grey, blue,
Installation Disconnect neutral + Green-yellow D4/6.NTLP 1SNA110439R2200 20 20.00
1SNC161201F0014 Main technical data Mounting instructions
feed-through + ground
UL
IEC
CSA
G32, TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 18-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.2-4 mm² length 0.37 in
D4/6.NTLP Flexible with insulated ferrule
Gauge A4 Screw clamp Flat screwdriver
Tool Ø 4 mm
Ø 0.157 in
Torque 0.4 - 0.8 N.m
87 3.43"
Rated current / Rated cross section 30 A / 4 mm² 20 A / 12 AWG 3.5 - 7 lb.in
Rated short-time withstand current (1s) 480 A Disconnect device Flat screwdriver
59 2.33" Rated voltage 320 V 300 V Tool Ø 4 mm
Ø 0.157 in
4000 V
Impulse withstand voltage
Protection IP20 NEMA 1 Torque 0.4 - 0.6 N.m
51.5 2.03" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
3.5 - 5.3 lb.in
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
43.5 1.72"
CE RoHS USR CNR Gost R
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1 mm 0.039 in Grey FED6 1SNA116964R1200 20 3.00
3 Jumper bars 2 poles 32 A BJM62 1SNA173217R2600 10 2.00
3 poles 1SNA173218R0700 10 3.00
3 4 4 poles 1SNA173219R0000 10 4.00
5 poles 1SNA173221R2200 10 5.00
10 poles 1SNA173226R2700 10 10.00
4 Circuit separators 1.5 mm 0.059 in Grey SCFD 1SNA114117R0700 10 10.00
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA167319R0600 50
5 6
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Clamps 0.5-35 mm² SFB1 1SNA163860R0500 50 12.00 10
16-35 mm² 6-2 AWG SFB2 1SNA168956R0600 50 11.00
8 Busbars Busbars BO3 1SNA164406R2400 1
7 8 9 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

9

1SNC161064S0201 - Rev. A

Technical data valid for copper conductors only.
