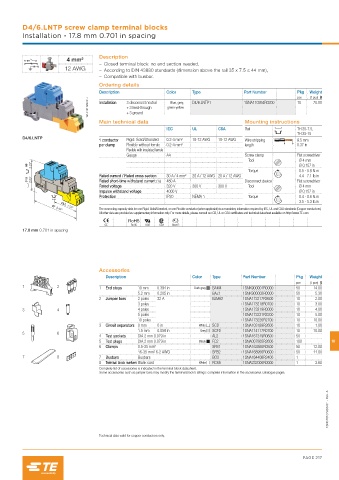

D4/6.LNTP screw clamp terminal blocks
Installation - 17.8 mm 0.701 in spacing

Description
N 4 mm²
– Closed terminal block: no end section needed,
12 AWG – According to DIN 43880 standards (dimension above the rail 35 x 7.5 ≤ 44 mm),
– Compatible with busbar.
Ordering details
Description Color Type Part Number Pkg Weight
(1 pce) g
pce
1SNC161195F0014 Installation 3 disconnect neutral green-yellow D4/6.LNTP1 1SNA110264R0200 10 70.00
Blue, grey,
+ 3 feed-through
+ 3 ground
Main technical data Mounting instructions
IEC UL CSA Rail TH 35-7.5,
TH 35-15
D4/6.LNTP
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 18-12 AWG 18-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.2-4 mm² length 0.37 in
Flexible with insulated ferrule
Gauge A4 Screw clamp Flat screwdriver
Tool Ø 4 mm
59 2.33" Ø 0.157 in
Torque 0.5 - 0.8 N.m
Rated current / Rated cross section 30 A / 4 mm² 20 A / 12 AWG 20 A / 12 AWG 4.4 - 7.1 lb.in
51.5 2.03" Rated short-time withstand current (1s) 480 A Disconnect device Flat screwdriver
Rated voltage 320 V 300 V 300 V Tool Ø 4 mm
Impulse withstand voltage 4000 V Ø 0.157 in
Protection IP20 NEMA 1 Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
43.5 1.72"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
87 3.43"
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE RoHS USR CSA Gost R
17.8 mm 0.701 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
2 Jumper bars 2 poles 32 A BJM62 1SNA173217R2600 10 2.00
3 poles 1SNA173218R0700 10 3.00
3 4 4 poles 1SNA173219R0000 10 4.00
5 poles 1SNA173221R2200 10 5.00
10 poles 1SNA173226R2700 10 10.00
3 Circuit separators 0 mm 0 in White SCD 1SNA103189R2600 10 1.00
1.5 mm 0.059 in Grey SCFD 1SNA114117R0700 10 10.00
5 6
4 Test sockets DIA 2 mm 0.079 in AL2 1SNA167319R0600 50
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 10
6 Clamps 0.5-35 mm² SFB1 1SNA163860R0500 50 12.00
16-35 mm² 6-2 AWG SFB2 1SNA168956R0600 50 11.00
7 8 7 Busbars Busbars BO3 1SNA164406R2400 1
8 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161072S0201 - Rev. A

Technical data valid for copper conductors only.
