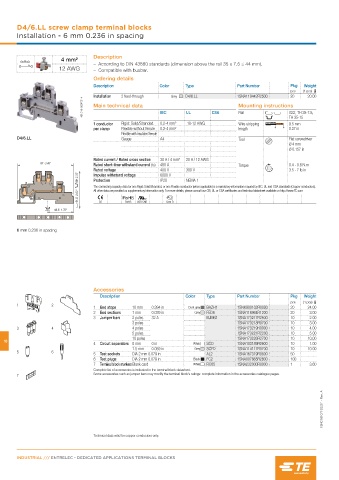

D4/6.LL screw clamp terminal blocks
Installation - 6 mm 0.236 in spacing

Description
4 mm²
– According to DIN 43880 standards (dimension above the rail 35 x 7.5 ≤ 44 mm),
12 AWG – Compatible with busbar.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
Installation 2 feed-through Grey D4/6.LL 1SNA110442R2500 20 20.00
1SNC161203F0014 Main technical data IEC UL CSA Mounting instructions
G32, TH 35-7.5,
Rail
9.5 mm
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 18-12 AWG Wire stripping TH 35-15
per clamp Flexible without ferrule 0.2-4 mm² length 0.37 in
Flexible with insulated ferrule
D4/6.LL Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 30 A / 4 mm² 20 A / 12 AWG
87 3.43"
Rated short-time withstand current (1s) 480 A Torque 0.4 - 0.8 N.m
Rated voltage 400 V 300 V 3.5 - 7 lb.in
59 2.33" Impulse withstand voltage 6000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
51.5 2.03" CE RoHS USR CNR Gost R
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
43.5 1.72"

6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1 mm 0.039 in Grey FED6 1SNA116964R1200 20 3.00
3 Jumper bars 2 poles 32 A BJM62 1SNA173217R2600 10 2.00
3 poles 1SNA173218R0700 10 3.00
3 4 4 poles 1SNA173219R0000 10 4.00
5 poles 1SNA173221R2200 10 5.00
10 poles 1SNA173226R2700 10 10.00
10
4 Circuit separators 0 mm 0 in White SCD 1SNA103189R2600 10 1.00
1.5 mm 0.059 in Grey SCFD 1SNA114117R0700 10 10.00
5 6
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA167319R0600 50
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markersBlank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161071S0201 - Rev. A

Technical data valid for copper conductors only.
