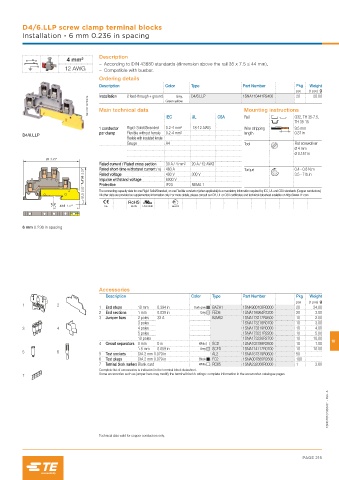

Page 507 - Entrelec Terminal Blocks Master Catalog

D4/6.LLP screw clamp terminal blocks
Installation - 6 mm 0.236 in spacing

Description
4 mm²
– According to DIN 43880 standards (dimension above the rail 35 x 7.5 ≤ 44 mm),
12 AWG – Compatible with busbar.
Ordering details
Description Color Type Part Number Pkg Weight
pce (1 pce) g
2 feed-through + ground
Installation
D4/6.LLP
20.00
1SNA110441R2400
Grey,
20
1SNC161097F0014 Main technical data Green-yellow Mounting instructions
IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2-4 mm² 18-12 AWG Wire stripping 9.5 mm
per clamp Flexible without ferrule 0.2-4 mm² length 0.37 in
D4/6.LLP
Flexible with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
87 3.43"
Rated current / Rated cross section 30 A / 4 mm² 20 A / 12 AWG
59 2.33" Rated short-time withstand current (1s) 480 A 300 V Torque 0.4 - 0.8 N.m
Rated voltage
400 V
3.5 - 7 lb.in
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
51.5 2.03" The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
43.5 1.72" CE RoHS USR CNR Gost R
6 mm 0.236 in spacing

Accessories
Description Color Type Part Number Pkg Weight
pce (1 pce) g
1 2
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 1 mm 0.039 in Grey FED6 1SNA116964R1200 20 3.00
3 Jumper bars 2 poles 32 A BJM62 1SNA173217R2600 10 2.00
3 poles 1SNA173218R0700 10 3.00
3 4 4 poles 1SNA173219R0000 10 4.00
5 poles 1SNA173221R2200 10 5.00
10 poles 1SNA173226R2700 10 10.00
4 Circuit separators 0 mm 0 in White SCD 1SNA103189R2600 10 1.00 10
1.5 mm 0.059 in Grey SCFD 1SNA114117R0700 10 10.00
5 6
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA167319R0600 50
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markers Blank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.

1SNC161070S0201 - Rev. A

Technical data valid for copper conductors only.
