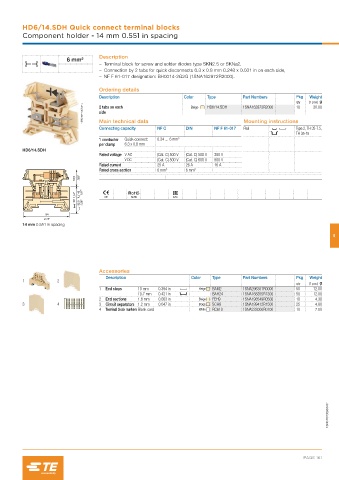

Page 163 - Railways Applications Terminal blocks

HD6/14.SDH Quick connect terminal blocks
Component holder - 14 mm 0.551 in spacing

Description
6 mm²
– Terminal block for screw and solder diodes type SKN2.5 or SKNa2,
– Connection by 2 tabs for quick disconnects 6.3 x 0.8 mm 0.248 x 0.031 in on each side,
– NF F 61-017 designation: BH0014-2G2G (1SNA162972R2000).

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC167105V0014 side
10
HD6/14.SDH
30.00
1SNA162972R2000
2 tabs on each
Beige
Main technical data
Connecting capacity NF C DIN NF F 61-017 Mounting instructions Type 2, TH 35-7.5,
Rail
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
HD6/14.SDH
Rated voltage V AC (Cat. C) 500 V (Cat. C) 500 V 380 V
V DC (Cat. C) 500 V (Cat. C) 600 V 500 V
Rated current 25 A 26 A 16 A
Rated cross section 6 mm² 6 mm²

CE RoHS EAC

14 mm 0.551 in spacing
5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.6 mm 0.063 in Beige FEH9 1SNA198549R0500 10 4.30
3 4 3 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
4 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167069S0201

PAGE 161
