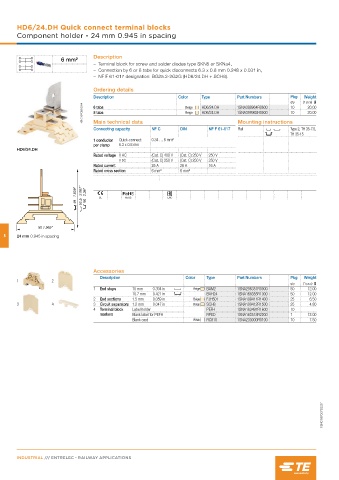

Page 158 - Railways Applications Terminal blocks

HD6/24.DH Quick connect terminal blocks
Component holder - 24 mm 0.945 in spacing

Description
6 mm²
– Terminal block for screw and solder diodes type SKN5 or SKNa4,
– Connection by 6 or 8 tabs for quick disconnects 6.3 x 0.8 mm 0.248 x 0.031 in,
– NF F 61-017 designation: BG25.2-2G2G (HD6/24.DH + SCH8).

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC167092V0014 8 tabs Beige HD6/24.DH 1SNA399963R0500 10 20.00
HD6/24.DH
1SNA399964R0600
20.00
6 tabs
10
Beige
Main technical data
Rail
Connecting capacity NF C DIN NF F 61-017 Mounting instructions Type 2, TH 35-7.5,
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
HD6/24.DH
Rated voltage V AC (Cat. C) 400 V (Cat. C) 250 V 250 V
V DC (Cat. C) 250 V (Cat. C) 250 V 250 V
Rated current 25 A 26 A 16 A
Rated cross section 6 mm² 6 mm²

CE RoHS EAC

5 24 mm 0.945 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.5 mm 0.059 in Beige FJH501 1SNA199411R1400 25 6.50
3 4 3 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
4 Terminal block Label holder PEFH 1SNA163497R1600 10
markers Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167007S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
