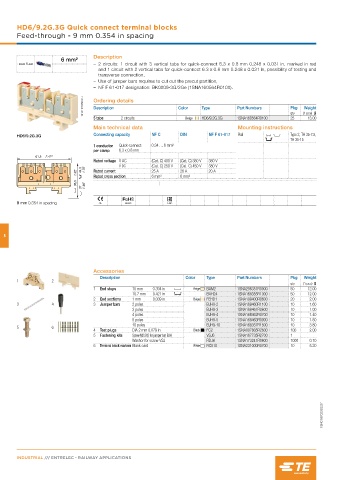

HD6/9.2G.3G Quick connect terminal blocks
Feed-through - 9 mm 0.354 in spacing

Description
6 mm²
– 2 circuits: 1 circuit with 3 vertical tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in, marked in red
and 1 circuit with 2 vertical tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in, possibility of testing and
transverse connection,
– Use of jumper bars requires to cut out the precut partition,
– NF F 61-017 designation: BK0009-3G/2Ge (1SNA160564R0100).
1SNC167005F0014 Ordering details Color Type Part Numbers Pkg (1 pce) g
Description
Weight
5 tabs 2 circuits Beige HD6/9.2G.3G 1SNA160564R0100 qty 13.00
25
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
HD6/9.2G.3G
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 400 V (Cat. C) 380 V 380 V
V DC (Cat. C) 250 V (Cat. C) 450 V 380 V
Rated current 25 A 26 A 20 A
Rated cross section 6 mm² 6 mm²

9 mm 0.354 in spacing CE RoHS EAC

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEHD1 1SNA199400R0600 20 2.00
3 4 3 Jumper bars 2 poles BJH9-2 1SNA168460R1100 10 1.60
3 poles BJH9-3 1SNA168461R0600 10 1.00
4 poles BJH9-4 1SNA168462R0700 10 1.40
5 poles BJH9-5 1SNA168463R0000 10 1.80
10 poles BJH9-10 1SNA168357R1500 10 3.80
5 6
4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
5 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
6 Terminal block markers Blank card White RC510 1SNA231000R0700 10 5.20

1SNC167023S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
