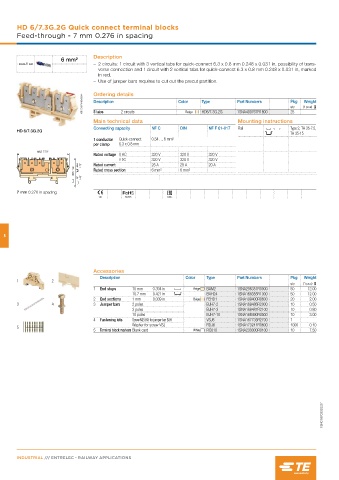

Page 150 - Railways Applications Terminal blocks

HD 6/7.3G.2G Quick connect terminal blocks
Feed-through - 7 mm 0.276 in spacing

Description
6 mm²
– 2 circuits: 1 circuit with 3 vertical tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in, possibility of trans-
verse connection and 1 circuit with 2 vertical tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in, marked
in red,
– Use of jumper bars requires to cut out the precut partition.

1SNC167140V0014 Ordering details Color Type Part Numbers Pkg (1 pce) g
Description
Weight
qty
5 tabs
25
2 circuits
HD6/7.3G.2G
1SNA400767R1600
Beige
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
HD 6/7.3G.2G
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
69.5 7.73"
Rated voltage V AC 320 V 320 V 320 V
V DC 320 V 320 V 320 V
44.5 1.75" Rated current 25 A 25 A 20 A
33.5 1.32" Rated cross section 6 mm² 6 mm²
37 1.46"
7 mm 0.276 in spacing
CE RoHS EAC

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEHD1 1SNA199400R0600 20 2.00
3 4 3 Jumper bars 2 poles BJH7-2 1SNA168486R2000 10 0.50
3 poles BJH7-3 1SNA168487R2100 10 0.80
10 poles BJH7-10 1SNA168490R0000 10 3.00
4 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
5
5 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167033S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
