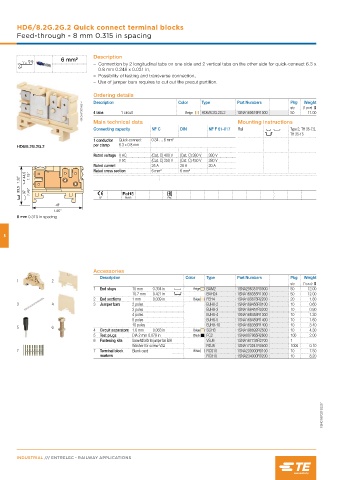

Page 148 - Railways Applications Terminal blocks

HD6/8.2G.2G.2 Quick connect terminal blocks
Feed-through - 8 mm 0.315 in spacing

Description
6 mm²
– Connection by 2 longitudinal tabs on one side and 2 vertical tabs on the other side for quick-connect 6.3 x
0.8 mm 0.248 x 0.031 in,
– Possibility of testing and transverse connection,
– Use of jumper bars requires to cut out the precut partition.
Ordering details Color Type Part Numbers Pkg Weight
Description
1SNC167087V0014 4 tabs 1 circuit Beige HD6/8.2G.2G.2 1SNA160619R1000 qty (1 pce) g
11.00
50
Main technical data
Connecting capacity NF C DIN NF F 61-017 Mounting instructions Type 2, TH 35-7.5,
Rail
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
HD6/8.2G.2G.2 per clamp 6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 400 V (Cat. C) 380 V 380 V
V DC (Cat. C) 250 V (Cat. C) 450 V 380 V
Rated current 25 A 26 A 20 A
Rated cross section 6 mm² 6 mm²

CE RoHS EAC

8 mm 0.315 in spacing

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEH4 1SNA193878R2200 20 1.80
3 4 3 Jumper bars 2 poles BJH8-2 1SNA168456R0100 10 0.60
3 poles BJH8-3 1SNA168457R0200 10 0.90
4 poles BJH8-4 1SNA168458R1300 10 1.30
5 poles BJH8-5 1SNA168459R1400 10 1.60
10 poles BJH8-10 1SNA168356R1400 10 3.40
5 6
4 Circuit separators 1.6 mm 0.063 in Beige SCH3 1SNA198692R2500 10 4.30
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
6 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
7 7 Terminal block Blank card White RC610 1SNA233000R0100 10 7.50
markers RC810 1SNA234000R0200 10 8.20

1SNC167021S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
