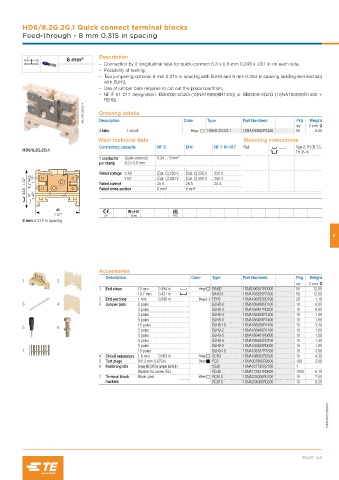

Page 147 - Railways Applications Terminal blocks

HD6/8.2G.2G.1 Quick connect terminal blocks
Feed-through - 8 mm 0.315 in spacing

Description
6 mm²
– Connection by 2 longitudinal tabs for quick-connect 6.3 x 0.8 mm 0.248 x .031 in on each side,
– Possibility of testing,
– Two jumpering options: 8 mm 0.315 in spacing with BJH8 and 9 mm 0.354 in spacing (adding end section)
with BJH9,
– Use of jumper bars requires to cut out the precut partition,
– NF F 61-017 designation: BB0008-2G2G (1SNA160606R1400) or BB0009-2G2G (1SNA160606R1400 +
FEH3).
1SNC167025F0014 Ordering details

Pkg
Weight
Part Numbers
Color
Type
Description
qty (1 pce) g
4 tabs 1 circuit Beige HD6/8.2G.2G.1 1SNA160606R1400 50 8.00
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
HD6/8.2G.2G.1
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 250 V (Cat. C) 250 V 250 V
V DC (Cat. C) 250 V (Cat. C) 300 V 250 V
Rated current 25 A 26 A 20 A
Rated cross section 6 mm² 6 mm²

CE RoHS EAC
8 mm 0.315 in spacing

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEH3 1SNA198352R0700 20 1.10
3 4 3 Jumper bars 2 poles BJH8-2 1SNA168456R0100 10 0.60
3 poles BJH8-3 1SNA168457R0200 10 0.90
4 poles BJH8-4 1SNA168458R1300 10 1.30
5 poles BJH8-5 1SNA168459R1400 10 1.60
10 poles BJH8-10 1SNA168356R1400 10 3.40
5 6
2 poles BJH9-2 1SNA168460R1100 10 1.60
3 poles BJH9-3 1SNA168461R0600 10 1.00
4 poles BJH9-4 1SNA168462R0700 10 1.40
5 poles BJH9-5 1SNA168463R0000 10 1.80
7 10 poles BJH9-10 1SNA168357R1500 10 3.80
4 Circuit separators 1.6 mm 0.063 in Beige SCH3 1SNA198692R2500 10 4.30
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
6 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
7 Terminal block Blank card White RC610 1SNA233000R0100 10 7.50
markers RC810 1SNA234000R0200 10 8.20
