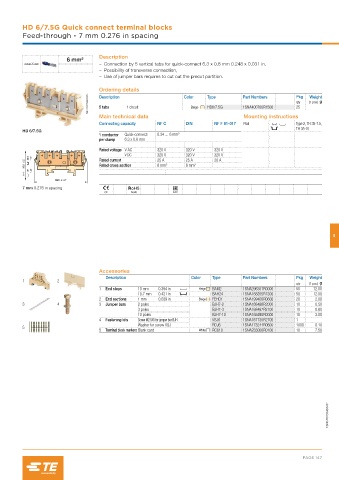

Page 149 - Railways Applications Terminal blocks

HD 6/7.5G Quick connect terminal blocks
Feed-through - 7 mm 0.276 in spacing

Description
6 mm²
– Connection by 5 vertical tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in,
– Possibility of transverse connection,
– Use of jumper bars requires to cut out the precut partition.

Ordering details Pkg
1SNC167138V0014 Description 1 circuit Color Type Part Numbers qty (1 pce) g
Weight
HD6/7.5G
1SNA400766R1500
25
5 tabs
Beige
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
HD 6/7.5G
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
Rated voltage V AC 320 V 320 V 320 V
V DC 320 V 320 V 320 V
44.5 1.75" Rated current 25 A 25 A 20 A
33.5 1.32" Rated cross section 6 mm² 6 mm²
37 1.46"
69.5 2.73"
7 mm 0.276 in spacing
CE RoHS EAC

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEHD1 1SNA199400R0600 20 2.00
3 4 3 Jumper bars 2 poles BJH7-2 1SNA168486R2000 10 0.50
3 poles BJH7-3 1SNA168487R2100 10 0.80
10 poles BJH7-10 1SNA168490R0000 10 3.00
4 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
5
5 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167054S0201

PAGE 147
