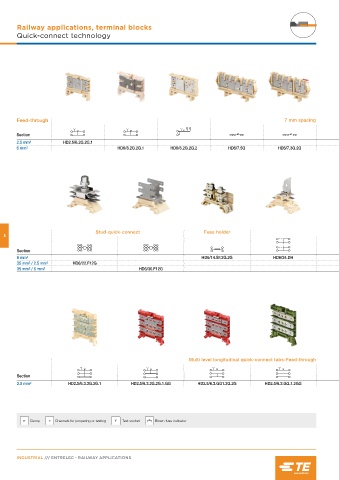

Page 144 - Railways Applications Terminal blocks
P. 144
Railway applications, terminal blocks
Quick-connect technology
Feed-through 7 mm spacing
Section
2.5 mm² HD2.5/6.2G.2G.1
6 mm² HD6/8.2G.2G.1 HD6/8.2G.2G.2 HD6/7.5G HD6/7.3G.2G
Stud-quick-connect Fuse holder
5
Section
6 mm² HD6/14.SF.2G.2G HD6/24.DH
35 mm² / 2.5 mm² HD6/22.F12G
35 mm² / 6 mm² HD6/30.F12G
Multi level longitudinal quick-connect tabs-Feed-through
Section
2.5 mm² HD2.5/6.3.3G.3G.1 HD2.5/6.3.2G.2G.1.GG HD2.5/6.3.GG1.2G.2G HD2.5/6.3.GG.1.2GG
Clamp - Channels for jumpering or testing - Test socket - Blown-fuse indicator
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
