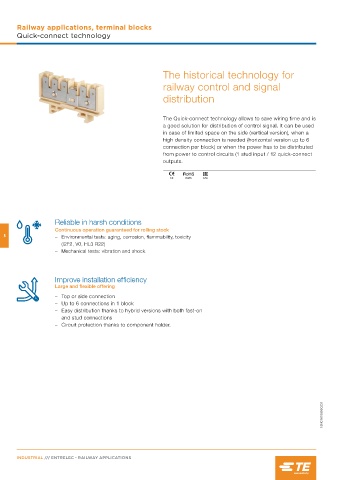

Railway applications, terminal blocks
Quick-connect technology

The historical technology for
railway control and signal

distribution

The Quick-connect technology allows to save wiring time and is
a good solution for distribution of control signal. It can be used
in case of limited space on the side (vertical version), when a
high density connection is needed (horizontal version up to 6
connection per block) or when the power has to be distributed
from power to control circuits (1 stud input / 12 quick-connect
outputs.

CE RoHS EAC

Reliable in harsh conditions
Continuous operation guaranteed for rolling stock
5 – Environmental tests: aging, corrosion, flammability, toxicity
(I2F2, V0, HL3 R22)
– Mechanical tests: vibration and shock.

Improve installation efficiency
Large and flexible offering
– Top or side connection
– Up to 6 connections in 1 block
– Easy distribution thanks to hybrid versions with both fast-on
and stud connections
– Circuit protection thanks to component holder.

1SNC167089S0201
