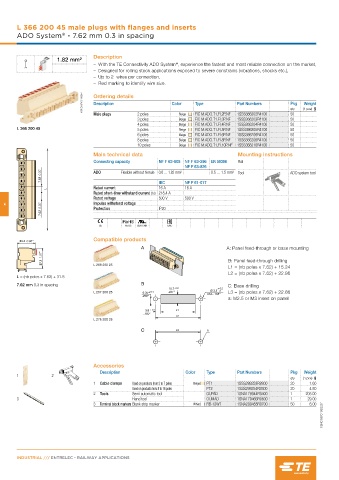

Page 136 - Railways Applications Terminal blocks

L 366 200 45 male plugs with flanges and inserts
®
ADO System - 7.62 mm 0.3 in spacing

Description
1.82 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.
1SNC167131V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

Male plugs 2 poles Beige FIC M.ADO.T1.FI.2P.NF 1SSS366202R4100 qty (1 pce) g
50
3 poles Beige FIC M.ADO.T1.FI.3P.NF 1SSS366203R4100 50
4 poles Beige FIC M.ADO.T1.FI.4P.NF 1SSS366204R4100 50
L 366 200 45 5 poles Beige FIC M.ADO.T1.FI.5P.NF 1SSS366205R4100 50
6 poles Beige FIC M.ADO.T1.FI.6P.NF 1SSS366206R4100 50
8 poles Beige FIC M.ADO.T1.FI.8P.NF 1SSS366208R4100 50
10 poles Beige FIC M.ADO.T1.FI.10P.NF 1SSS366210R4100 50
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail
NF F 63-826
7.62 0.30" ADO Flexible without ferrule 0.6 … 1.82 mm² 0.5 … 1.5 mm² Tool ADO system tool

Rated current IEC NF F 61-017
16 A
16 A
L
Rated short-time withstand current (1s) 218.4 A
Rated voltage 500 V 500 V
4 Impulse withstand voltage
7.62 0.30" Protection IP20
CE RoHS USR CNR EAC

24.4 0.96" Compatible products
A A: Panel feed-through or base mounting
27.1 1.07" B: Panel feed-through drilling

L 266 200 25
L1 = (nb poles x 7.62) + 15.24
L2 = (nb poles x 7.62) + 22.86
L = (nb poles x 7.62) + 31.5

7.62 mm 0.3 in spacing B C: Base drilling
L 267 200 25 L3 = (nb poles x 7.62) + 22.86
a: M2.5 or M3 insert on panel

L1
L2
L 276 200 25
C L3 a

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
3 Hand tool OUMAD 1SNA179466R0600 1 29.00
1SNC167019S0201
3 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
