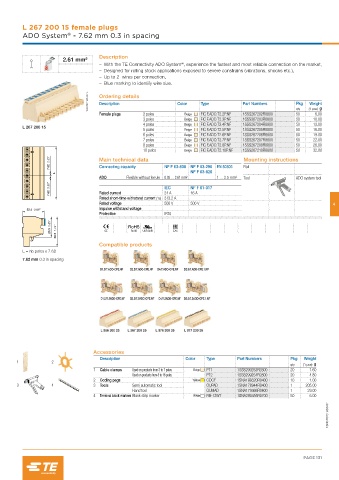

L 267 200 15 female plugs
ADO System - 7.62 mm 0.3 in spacing
®

Description
2.61 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Blue marking to identify wire size.
1SNC167128V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

6.00
Female plugs 2 poles Beige FIC F.ADO.T2.2P.NF 1SSS267202R8800 qty (1 pce) g
50
3 poles Beige FIC F.ADO.T2.3P.NF 1SSS267203R8800 50 10.00
4 poles Beige FIC F.ADO.T2.4P.NF 1SSS267204R8800 50 13.00
L 267 200 15
5 poles Beige FIC F.ADO.T2.5P.NF 1SSS267205R8800 50 16.00
6 poles Beige FIC F.ADO.T2.6P.NF 1SSS267206R8800 50 19.00
7 poles Beige FIC F.ADO.T2.7P.NF 1SSS267207R8800 50 22.00
8 poles Beige FIC F.ADO.T2.8P.NF 1SSS267208R8800 50 26.00
10 poles Beige FIC F.ADO.T2.10P.NF 1SSS267210R8800 50 32.00
7.62 0.30" Main technical data NF F 63-808 NF F 63-296 EN 50306 Mounting instructions
Connecting capacity
Rail
L NF F 63-826
ADO Flexible without ferrule 0.93 … 2.61 mm² 1 … 2.5 mm² Tool ADO system tool
7.62 0.30" Rated current IEC NF F 61-017
16 A
24 A
Rated short-time withstand current (1s) 313.2 A
Rated voltage 500 V 500 V 4
22.4 0.88" Impulse withstand voltage
Protection IP20
20.3 0.80" 28.5 1.12" CE RoHS USR CNR EAC

Compatible products
L = nb poles x 7.62
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Coding pegs Yellow COCF 1SNA199320R0400 10 1.00
3 4 3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00
1SNC167012S0201
