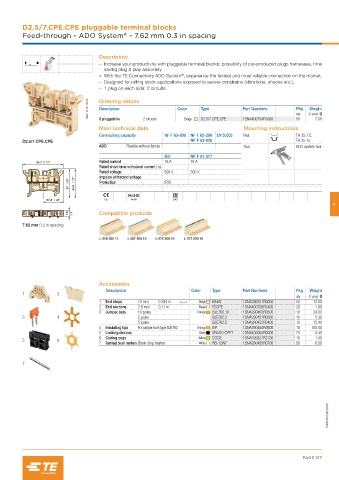

D2.5/7.CPE.CPE pluggable terminal blocks
®
Feed-through - ADO System - 7.62 mm 0.3 in spacing

Description
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses, time
saving plug & play assembly,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– 1 plug on each side: 2 circuits.

1SNC167121V0014 Ordering details 2 circuits Color Type Part Numbers Pkg (1 pce) g
Weight
Description
qty
1SNA400704R1000
Beige
D2.5/7.CPE.CPE
50
7.00
2 pluggables
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail TH 35-7.5,
D2.5/7.CPE.CPE NF F 63-826 TH 35-15
ADO Flexible without ferrule Tool ADO system tool
IEC NF F 61-017
54.7 2.15" Rated current 16 A 16 A
Rated short-time withstand current (1s)
Rated voltage 500 V 500 V
Impulse withstand voltage
37 1.46" 44.5 1.75" Protection IP20
27.4 1.08" CE RoHS EAC
4
7.6 0.3" Compatible products

7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 2.8 mm 0.11 in Beige FECPE 1SNA400708R2400 20 1.90
3 Jumper bars 10 poles Orange BJE762.10 1SNA290453R0500 10 24.00
3 4 2 poles BJE762.2 1SNA290451R0300 10 5.30
5 poles BJE762.5 1SNA290452R0400 10 15.40
4 Insulating tips For jumper bars type BJE762 Orange EIP 1SNA290454R0600 10 100.00
5 Locking devices Black VRADO.CPE7 1SNA400063R0000 20 0.40
6 Coding pegs Yellow COCE 1SNA199321R2100 10 1.00
5 6
7 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00

7
