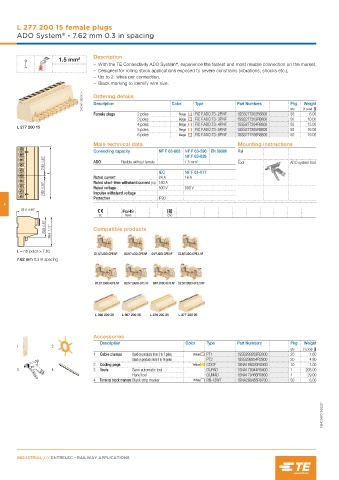

Page 132 - Railways Applications Terminal blocks

L 277 200 15 female plugs
®
ADO System - 7.62 mm 0.3 in spacing

Description
1.5 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Black marking to identify wire size.
1SNC167129V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

Female plugs 2 poles Beige FIC F.ADO.T3-.2P.NF 1SSS277202R8800 qty (1 pce) g
50
6.00
3 poles Beige FIC F.ADO.T3-.3P.NF 1SSS277203R8800 50 10.00
4 poles Beige FIC F.ADO.T3-.4P.NF 1SSS277204R8800 50 13.00
L 277 200 15
5 poles Beige FIC F.ADO.T3-.5P.NF 1SSS277205R8800 50 16.00
6 poles Beige FIC F.ADO.T3-.6P.NF 1SSS277206R8800 50 19.00
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail
NF F 63-826
7.62 0.30" ADO Flexible without ferrule 1.5 mm² Tool ADO system tool
L IEC NF F 61-017
Rated current 24 A 16 A
Rated short-time withstand current (1s) 180 A
7.62 0.30" Rated voltage 500 V 500 V
Impulse withstand voltage
Protection IP20
4
22.4 0.88"
CE RoHS EAC
20.3 0.80" 28.5 1.12" Compatible products

L = nb poles x 7.62
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Coding pegs Yellow COCF 1SNA199320R0400 10 1.00
3 4 3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00

1SNC167015S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
