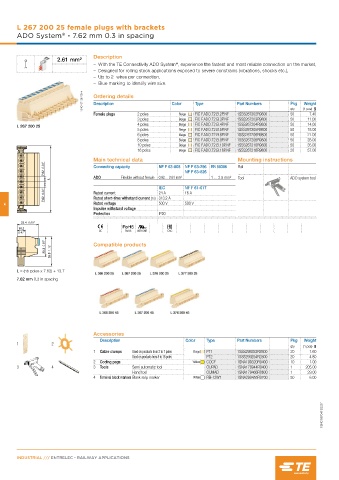

Page 134 - Railways Applications Terminal blocks

L 267 200 25 female plugs with brackets
®
ADO System - 7.62 mm 0.3 in spacing

Description
2.61 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Blue marking to identify wire size.
1SNC167125V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

7.40
50
Female plugs 2 poles Beige FIC F.ADO.T2.B.2P.NF 1SSS267202R9800 qty (1 pce) g
3 poles Beige FIC F.ADO.T2.B.3P.NF 1SSS267203R9800 50 11.00
4 poles Beige FIC F.ADO.T2.B.4P.NF 1SSS267204R9800 50 14.00
L 267 200 25
5 poles Beige FIC F.ADO.T2.B.5P.NF 1SSS267205R9800 50 18.00
6 poles Beige FIC F.ADO.T2.B.6P.NF 1SSS267206R9800 50 21.00
8 poles Beige FIC F.ADO.T2.B.8P.NF 1SSS267208R9800 50 28.00
10 poles Beige FIC F.ADO.T2.B.10P.NF 1SSS267210R9800 50 35.00
16 poles Beige FIC F.ADO.T2.B.16P.NF 1SSS267216R9800 20 57.00
Main technical data Mounting instructions
7.62 0.30" Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail
NF F 63-826
ADO Flexible without ferrule 0.93 … 2.61 mm² 1 … 2.5 mm² Tool ADO system tool
L
IEC NF F 61-017
7.62 0.30" Rated current 24 A 16 A
Rated short-time withstand current (1s) 313.2 A
4 Rated voltage 500 V 500 V
Impulse withstand voltage
Protection IP20
22.4 0.88"
10.3
CE RoHS USR CNR EAC
0.41"
20.3 0.80" 28.5 1.12" Compatible products

L = (nb poles x 7.62) + 13.7
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Coding pegs Yellow COCF 1SNA199320R0400 10 1.00
3 4 3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00

1SNC167041S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
