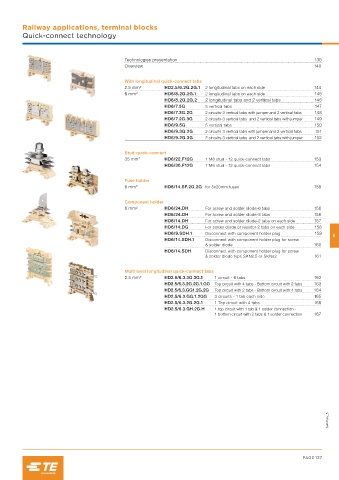

Railway applications, terminal blocks
Quick-connect technology

Technologies presentation 138
Overview 140

With longitudinal quick-connect tabs
2.5 mm² HD2.5/6.2G.2G.1 2 longitudinal tabs on each side 144
6 mm² HD6/8.2G.2G.1 2 longitudinal tabs on each side 145
HD6/8.2G.2G.2 2 longitudinal tabs and 2 vertical tabs 146
HD6/7.5G 5 vertical tabs 147
HD6/7.3G.2G 2 circuits-3 vertical tabs with jumper and 2 vertical tabs 148
HD6/7.2G.3G 2 circuits-3 vertical tabs and 2 vertical tabs with jumper 149
HD6/9.5G 5 vertical tabs 150
HD6/9.3G.2G 2 circuits-3 vertical tabs with jumper and 2 vertical tabs 151
HD6/9.2G.3G 2 circuits-3 vertical tabs and 2 vertical tabs with jumper 152

Stud-quick-connect
35 mm² HD6/22.F12G 1 M6 stud - 12 quick-connect tabs 153
HD6/30.F12G 1 M6 stud - 12 quick-connect tabs 154

Fuse holder
6 mm² HD6/14.SF.2G.2G for 5x20mm fuses 155

Component holder
6 mm² HD6/24.DH For screw and solder diode-6 tabs 156
HD6/24.DH For screw and solder diode-8 tabs 156
HD6/14.DH For screw and solder diode-2 tabs on each side 157
HD6/14.DG For solder diode or resistor-2 tabs on each side 158
HD6/9.SDH.1 Disconnect with component holder plug 159
5
HD6/14.SDH.1 Disconnect with component holder plug for screw
& solder diode 160
HD6/14.SDH Disconnect with component holder plug for screw
& solder diode type SKN2.5 or SKNa2 161

Multi level longitudinal quick-connect tabs
2.5 mm² HD2.5/6.3.3G.3G.1 1 circuit - 6 tabs 162
HD2.5/6.3.2G.2G.1.GG Top circuit with 4 tabs - Bottom circuit with 2 tabs 163
HD2.5/6.3.GG1.2G.2G Top circuit with 2 tabs - Bottom circuit with 4 tabs 164
HD2.5/6.3.GG.1.2GG 3 circuits - 1 tab each side 165
HD2.5/6.3.2G.2G.1 1 Top circuit with 4 tabs 166
HD2.5/6.3.GH.2G.H 1 top circuit with 1 tab & 1 solder connection -
1 bottom circuit with 2 tabs & 1 solder connection 167

Summary_5

PAGE 137
