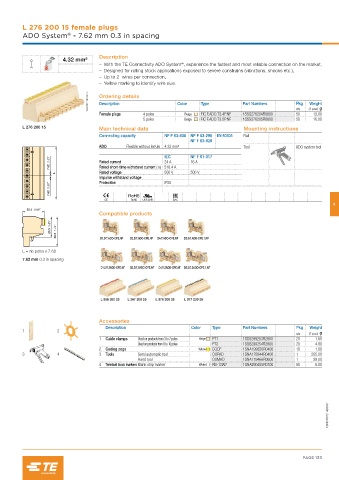

Page 135 - Railways Applications Terminal blocks

L 276 200 15 female plugs
®
ADO System - 7.62 mm 0.3 in spacing

Description
4.32 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Yellow marking to identify wire size.
1SNC167130V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

50
Female plugs 4 poles Beige FIC F.ADO.T3.4P.NF 1SSS276204R8800 qty (1 pce) g
13.00
5 poles Beige FIC F.ADO.T3.5P.NF 1SSS276205R8800 50 16.00
L 276 200 15
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail
NF F 63-826
ADO Flexible without ferrule 4.32 mm² Tool ADO system tool
7.62 0.30" Rated current IEC NF F 61-017
16 A
24 A
Rated short-time withstand current (1s) 518.4 A
L Rated voltage 500 V 500 V
Impulse withstand voltage IP20
Protection
7.62 0.30"

CE RoHS USR CNR EAC
4
22.4 0.88"
Compatible products
20.3 0.80" 28.5 1.12"

L = nb poles x 7.62
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Coding pegs Yellow COCF 1SNA199320R0400 10 1.00
3 4 3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00

1SNC167014S0201
