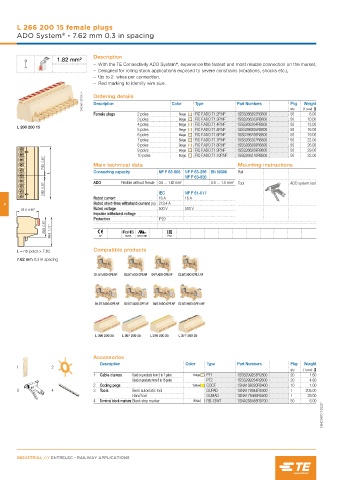

Page 130 - Railways Applications Terminal blocks

L 266 200 15 female plugs
®
ADO System - 7.62 mm 0.3 in spacing

Description
1.82 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.
1SNC167127V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

Female plugs 2 poles Beige FIC F.ADO.T1.2P.NF 1SSS266202R8800 qty (1 pce) g
6.00
50
3 poles Beige FIC F.ADO.T1.3P.NF 1SSS266203R8800 50 10.00
4 poles Beige FIC F.ADO.T1.4P.NF 1SSS266204R8800 50 13.00
L 266 200 15
5 poles Beige FIC F.ADO.T1.5P.NF 1SSS266205R8800 50 16.00
6 poles Beige FIC F.ADO.T1.6P.NF 1SSS266206R8800 50 19.00
7 poles Beige FIC F.ADO.T1.7P.NF 1SSS266207R8800 50 22.00
8 poles Beige FIC F.ADO.T1.8P.NF 1SSS266208R8800 50 26.00
9 poles Beige FIC F.ADO.T1.9P.NF 1SSS266209R8800 50 29.00
10 poles Beige FIC F.ADO.T1.10P.NF 1SSS266210R8800 50 32.00
7.62 0.30" Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail
L
NF F 63-826 0.5 … 1.5 mm² Tool
Flexible without ferrule
0.6 … 1.82 mm²
ADO
7.62 0.30" IEC NF F 61-017 ADO system tool
Rated current 16 A 16 A
4 Rated short-time withstand current (1s) 218.4 A
22.4 0.88" Rated voltage 500 V 500 V
Impulse withstand voltage
Protection IP20
20.3 0.80" 28.5 1.12" CE RoHS USR CNR EAC

L = nb poles x 7.62 Compatible products
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Coding pegs Yellow COCF 1SNA199320R0400 10 1.00
3 4 3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00
1SNC167011S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
