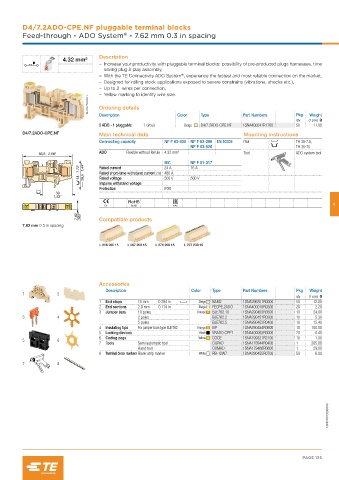

Page 127 - Railways Applications Terminal blocks

D4/7.2ADO-CPE.NF pluggable terminal blocks
®
Feed-through - ADO System - 7.62 mm 0.3 in spacing

Description
4.32 mm²
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses, time
saving plug & play assembly,
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Yellow marking to identify wire size.
1SNC167120V0014 Ordering details

Color
Type
Pkg
Weight
Description
Part Numbers
qty (1 pce) g
2 ADO - 1 pluggable 1 circuit Beige D4/7.2ADO-CPE.NF 1SNA400241R1700 50 11.00
D4/7.2ADO-CPE.NF Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail TH 35-7.5,
NF F 63-826 TH 35-15
ADO Flexible without ferrule 4.32 mm² Tool ADO system tool
IEC NF F 61-017
Rated current 24 A 16 A
Rated short-time withstand current (1s) 480 A
Rated voltage 500 V 500 V
Impulse withstand voltage
Protection IP20
4
CE RoHS EAC

Compatible products
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
2 End sections 2.9 mm 0.114 in Beige FECPE.2ADO 1SNA400018R0300 20 2.20
3 Jumper bars 10 poles Orange BJE762.10 1SNA290453R0500 10 24.00
3 4 2 poles BJE762.2 1SNA290451R0300 10 5.30
5 poles BJE762.5 1SNA290452R0400 10 15.40
4 Insulating tips For jumper bars type BJE762 Orange EIP 1SNA290454R0600 10 100.00
5 Locking devices Black VRADO.CPE7 1SNA400063R0000 20 0.40
6 Coding pegs Yellow COCE 1SNA199321R2100 10 1.00
5 6
7 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
8 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00
7 8

1SNC167008S0201

PAGE 125
