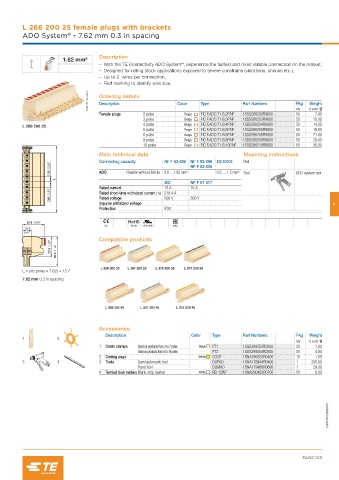

Page 131 - Railways Applications Terminal blocks

L 266 200 25 female plugs with brackets
®
ADO System - 7.62 mm 0.3 in spacing

Description
1.82 mm²
®
– With the TE Connectivity ADO System , experience the fastest and most reliable connection on the market,
– Designed for rolling stock applications exposed to severe constrains (vibrations, shocks etc.),
– Up to 2 wires per connection,
– Red marking to identify wire size.
1SNC167124V0014 Ordering details Color Type Part Numbers Pkg Weight
Description

Female plugs 2 poles Beige FIC F.ADO.T1.B.2P.NF 1SSS266202R9800 qty (1 pce) g
7.40
50
3 poles Beige FIC F.ADO.T1.B.3P.NF 1SSS266203R9800 50 10.00
4 poles Beige FIC F.ADO.T1.B.4P.NF 1SSS266204R9800 50 14.00
L 266 200 25
5 poles Beige FIC F.ADO.T1.B.5P.NF 1SSS266205R9800 50 18.00
6 poles Beige FIC F.ADO.T1.B.6P.NF 1SSS266206R9800 50 21.00
8 poles Beige FIC F.ADO.T1.B.8P.NF 1SSS266208R9800 50 28.00
10 poles Beige FIC F.ADO.T1.B.10P.NF 1SSS266210R9800 50 35.00
Main technical data Mounting instructions
Connecting capacity NF F 63-808 NF F 63-296 EN 50306 Rail
7.62 0.30" ADO Flexible without ferrule 0.6 … 1.82 mm² NF F 63-826 0.5 … 1.5 mm² Tool ADO system tool
L
IEC NF F 61-017
Rated current 16 A 16 A
7.62 0.30" Rated short-time withstand current (1s) 218.4 A 500 V
500 V
Rated voltage
Impulse withstand voltage 4
Protection IP20
22.4 0.88"
CE RoHS USR CNR EAC
10.3
0.41"
Compatible products
20.3 0.80" 28.5 1.12"

L = (nb poles x 7.62) + 13.7
7.62 mm 0.3 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 Cable clamps Used on products from 3 to 7 poles Beige PT1 1SSS299253R2800 20 1.60
Used on products from 8 to 16 poles PT2 1SSS299254R2800 20 4.80
2 Coding pegs Yellow COCF 1SNA199320R0400 10 1.00
3 4 3 Tools Semi automatic tool OUPAD 1SNA178944R0400 1 205.00
Hand tool OUMAD 1SNA179466R0600 1 29.00
4 Terminal block markers Blank strip marker White RB-12W7 1SNA290455R0700 50 6.00

1SNC167038S0201

PAGE 129
