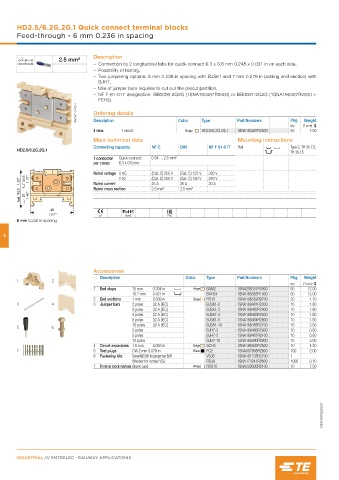

Page 146 - Railways Applications Terminal blocks

HD2.5/6.2G.2G.1 Quick connect terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
2.5 mm²
– Connection by 2 longitudinal tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in on each side,
– Possibility of testing,
– Two jumpering options: 6 mm 0.236 in spacing with BJS61 and 7 mm 0.276 in (adding end section) with
BJH7,
– Use of jumper bars requires to cut out the precut partition,
– NF F 61-017 designation: BB0006-2G2G (1SNA160487R2500) or BB0007-2G2G (1SNA160487R2500 +
FEH3).
1SNC167101V0014 Ordering details

Pkg
Color
Type
Weight
Part Numbers
Description
qty (1 pce) g
4 tabs 1 circuit Beige HD2.5/6.2G.2G.1 1SNA160487R2500 50 7.00
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
HD2.5/6.2G.2G.1
TH 35-15
1 conductor Quick-connect: 0.34 … 2.5 mm²
per clamp 6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 250 V (Cat. C) 125 V 250 V
V DC (Cat. C) 250 V (Cat. C) 150 V 250 V
Rated current 25 A 26 A 20 A
Rated cross section 2.5 mm² 2.5 mm²

CE RoHS EAC
6 mm 0.236 in spacing

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEH3 1SNA198352R0700 20 1.10
3 4 3 Jumper bars 2 poles 32 A (IEC) BJS61-2 1SNA168481R2300 10 1.80
3 poles 32 A (IEC) BJS61-3 1SNA168482R2400 10 1.80
4 poles 32 A (IEC) BJS61-4 1SNA168483R2500 10 1.80
5 poles 32 A (IEC) BJS61-5 1SNA168484R2600 10 1.80
10 poles 32 A (IEC) BJS61-10 1SNA168485R2700 10 2.00
5 6
2 poles BJH7-2 1SNA168486R2000 10 0.50
3 poles BJH7-3 1SNA168487R2100 10 0.80
10 poles BJH7-10 1SNA168490R0000 10 3.00
4 Circuit separators 1.6 mm 0.063 in Beige SCH3 1SNA198692R2500 10 4.30
7 5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
6 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
7 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167022S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
