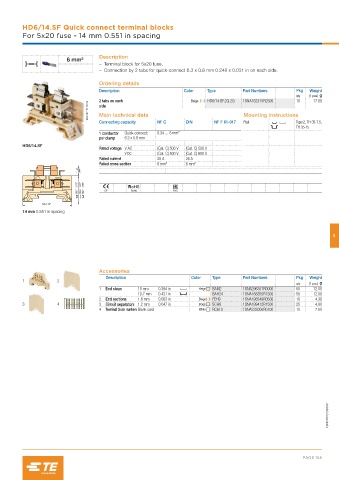

Page 157 - Railways Applications Terminal blocks

HD6/14.SF Quick connect terminal blocks
For 5x20 fuse - 14 mm 0.551 in spacing

Description
6 mm²
– Terminal block for 5x20 fuse,
– Connection by 2 tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in on each side.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
2 tabs on each Beige HD6/14.SF.2G.2G 1SNA162315R2500 10 17.00
1SNC167151F0014 Main technical data Mounting instructions
side
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
HD6/14.SF
Rated voltage V AC (Cat. C) 500 V (Cat. C) 500 V
V DC (Cat. C) 500 V (Cat. C) 600 V
Rated current 25 A 26 A
Rated cross section 6 mm² 6 mm²

CE RoHS EAC

14 mm 0.551 in spacing

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.6 mm 0.063 in Beige FEH9 1SNA198549R0500 10 4.30
3 4 3 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
4 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167073S0201

PAGE 155
