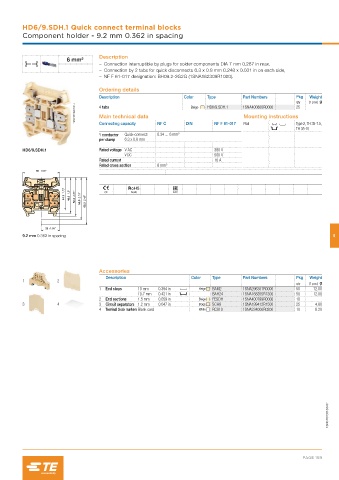

Page 161 - Railways Applications Terminal blocks

HD6/9.SDH.1 Quick connect terminal blocks
Component holder - 9.2 mm 0.362 in spacing

Description
6 mm²
– Connection interruptible by plugs for solder components DIA 7 mm 0.287 in max,
– Connection by 2 tabs for quick disconnects 6.3 x 0.8 mm 0.248 x 0.031 in on each side,
– NF F 61-017 designation: BH09.2-2G2G (1SNA162309R1000).

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC167090V0014 Main technical data Mounting instructions
4 tabs
25
1SNA400800R0000
HD6/9.SDH.1
Beige
NF C
Type 2, TH 35-7.5,
NF F 61-017
DIN
Rail
Connecting capacity
TH 35-15
1 conductor Quick-connect: 0.34 … 6 mm²
per clamp 6.3 x 0.8 mm
HD6/9.SDH.1 Rated voltage V AC 380 V
V DC 500 V
Rated current 16 A
Rated cross section 6 mm²
50 1.96"
44.1 1.73" 48.3 1.9" 52.3 2.05" 55.8 2.19" 63.3 2.49" CE RoHS EAC

25 0.98"
9.2 mm 0.362 in spacing 5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1.5 mm 0.059 in Beige FESDH 1SNA400799R0000 10
3 4 3 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
4 Terminal block markers Blank card White RC810 1SNA234000R0200 10 8.20

1SNC167051S0201

PAGE 159
