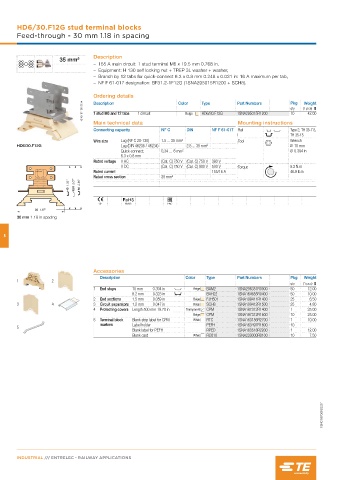

Page 156 - Railways Applications Terminal blocks

HD6/30.F12G stud terminal blocks
Feed-through - 30 mm 1.18 in spacing

Description
35 mm²
– 155 A main circuit: 1 stud terminal M6 x 19.5 mm 0.768 in,
– Equipment: H 130 self locking nut + TREP 3L washer + washer,
– Branch by 12 tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in: 16 A maximum per tab,
– NF F 61-017 designation: BF31.2-1F12G (1SNA295015R1200 + SCH8).

Ordering details Color Type Part Numbers Pkg Weight
1SNC167106V0014 1 stud M6 and 12 tabs 1 cirrcuit Beige HD6/30.F12G 1SNA295015R1200 qty (1 pce) g
Description
10
42.00
Main technical data Mounting instructions
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
Wire size Lug (NF C 20-130) 1.5 ... 35 mm² Tool Wrench
HD6/30.F12G Lug (DIN 46235 / 46234) 2.5 ... 35 mm² Ø 10 mm
Quick-connect: 0.34 … 6 mm² Ø 0.394 in
6.3 x 0.8 mm
Rated voltage V AC (Cat. C) 750 V (Cat. C) 750 V 380 V
V DC (Cat. C) 750 V (Cat. C) 900 V 500 V Torque 5.3 N.m
Rated current 155/16 A 46.9 lb.in
Rated cross section 35 mm²
49 1.93" 52.5 2.07" 60 2.36"

CE RoHS EAC
50 1.97"
30 mm 1.18 in spacing

5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
8.2 mm 0.323 in BAH22 1SNA164655R0400 50 10.00
2 End sections 1.5 mm 0.059 in Beige FJH501 1SNA199411R1400 25 6.50
3 4 3 Circuit separators 1.2 mm 0.047 in Beige SCH8 1SNA199412R1500 25 4.80
4 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1 25.00
Beige CPM 1SNA197312R1600 10 25.00
5 Terminal block Blank strip label for CPM White RTC 1SNA163156R2700 1 10.00
markers Label holder PEFH 1SNA163497R1600 10
5
Blank label for PEFH RPED 1SNA163518R2200 1 12.00
Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167065S0201
