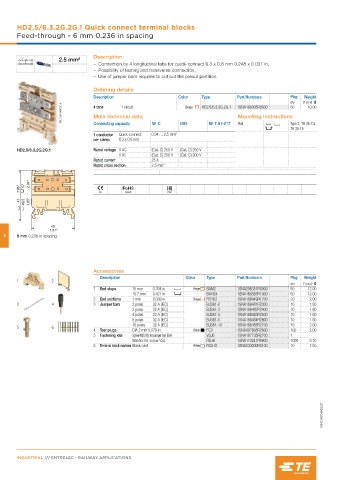

Page 168 - Railways Applications Terminal blocks

HD2.5/6.3.2G.2G.1 Quick connect terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
2.5 mm²
– Connection by 4 longitudinal tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in,
– Possibility of testing and transverse connection,
– Use of jumper bars requires to cut out the precut partition.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC167145F0014 Main technical data Mounting instructions
1SNA190305R0500
10.00
1 circuit
HD2.5/6.3.2G.2G.1
50
4 tabs
Beige
NF F 61-017
Rail
NF C
Type 2, TH 35-7.5,
DIN
Connecting capacity
TH 35-15
1 conductor Quick-connect: 0.34 … 2.5 mm²
per clamp 6.3 x 0.8 mm
HD2.5/6.3.2G.2G.1 Rated voltage V AC (Cat. C) 250 V (Cat. C) 250 V
V DC (Cat. C) 250 V (Cat. C) 300 V
Rated current 25 A
Rated cross section 2.5 mm²
CE RoHS EAC

5 6 mm 0.236 in spacing

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEHD2 1SNA168949R1700 20 2.00
3 4 3 Jumper bars 2 poles 32 A (IEC) BJS61-2 1SNA168481R2300 10 1.80
3 poles 32 A (IEC) BJS61-3 1SNA168482R2400 10 1.80
4 poles 32 A (IEC) BJS61-4 1SNA168483R2500 10 1.80
5 poles 32 A (IEC) BJS61-5 1SNA168484R2600 10 1.80
10 poles 32 A (IEC) BJS61-10 1SNA168485R2700 10 2.00
5 6
4 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100 2.00
5 Fastening kits Screw M2.5X5 for jumper bar BJH VSJ6 1SNA167735R2700 1
Washer for screw VSJ RDJ6 1SNA173241R0600 1000 0.10
6 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167049S0201

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
