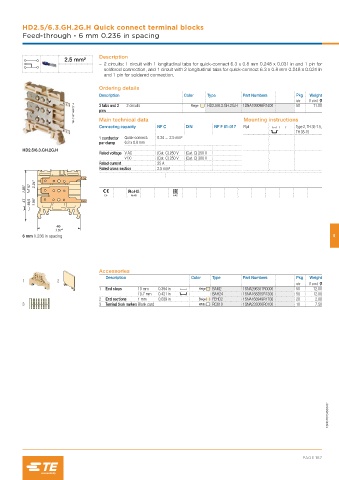

HD2.5/6.3.GH.2G.H Quick connect terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
2.5 mm²
– 2 circuits: 1 circuit with 1 longitudinal tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in and 1 pin for
soldered connection, and 1 circuit with 2 longitudinal tabs for quick-connect 6.3 x 0.8 mm 0.248 x 0.031 in
and 1 pin for soldered connection.

Ordering details
Description Color Type Part Numbers Pkg Weight
qty (1 pce) g
1SNC167146F0014 pins Mounting instructions
2 circuits
11.00
50
1SNA199096R1400
3 tabs and 2
HD2.5/6.3.GH.2G.H
Beige
Main technical data
Connecting capacity NF C DIN NF F 61-017 Rail Type 2, TH 35-7.5,
TH 35-15
1 conductor Quick-connect: 0.34 … 2.5 mm²
per clamp 6.3 x 0.8 mm
HD2.5/6.3.GH.2G.H
Rated voltage V AC (Cat. C) 250 V (Cat. C) 250 V
V DC (Cat. C) 250 V (Cat. C) 300 V
Rated current 25 A
Rated cross section 2.5 mm²

CE RoHS EAC

6 mm 0.236 in spacing 5

Accessories
Description Color Type Part Numbers Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Beige BAM2 1SNA296351R0000 50 12.00
10.7 mm 0.421 in BAH24 1SNA168355R1300 50 12.00
2 End sections 1 mm 0.039 in Beige FEHD2 1SNA168949R1700 20 2.00
3 3 Terminal block markers Blank card White RC610 1SNA233000R0100 10 7.50

1SNC167045S0201
