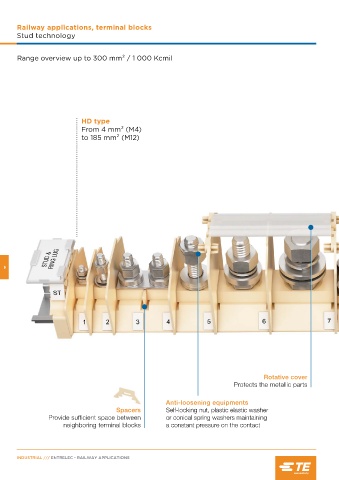

Railway applications, terminal blocks
       Stud technology



       Range overview up to 300 mm2 / 1 000 Kcmil












                              HD type
                              From 4 mm2 (M4)
                              to 185 mm2 (M12)


























  6






















                                                                                              Rotative cover
                                                                                   Protects the metallic parts


                                                           Anti-loosening equipments
                                          Spacers          Self-locking nut, plastic elastic washer
                  Provide sufficient space between          or conical spring washers maintaining
                       neighboring terminal blocks         a constant pressure on the contact
