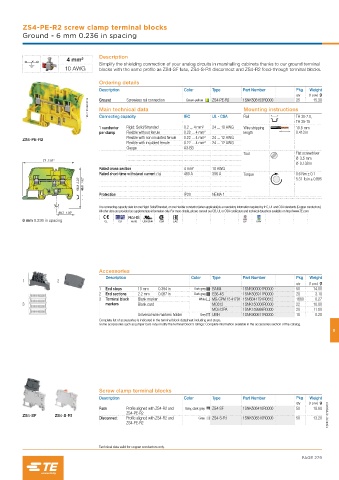

Page 281 - Railways Applications Terminal blocks

ZS4-PE-R2 screw clamp terminal blocks
Ground - 6 mm 0.236 in spacing

Description
4 mm²
Simplify the shielding connection of your analog circuits in marshalling cabinets thanks to our ground terminal
10 AWG blocks with the same profile as ZS4-SF fuse, ZS4-S-R1 disconnect and ZS4-R2 feed-through terminal blocks.

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNK161089V0014 Main technical data Mounting instructions
Screwless rail connection
1SNK506153R0000
Ground
ZS4-PE-R2
Green-yellow
15.30
25
UL - CSA
Rail
IEC
TH 35-7.5,
Connecting capacity
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible without ferrule 0.22 ... 4 mm² length 0.413 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
ZS4-PE-R2
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A3-B3
Tool Flat screwdriver
Ø 3.5 mm
77 3.03"
Ø 0.138 in
Rated cross section 4 mm² 10 AWG
Rated short-time withstand current (1s) 480 A 396 A Torque 0.6 Nm ± 0.1
56.3 2.22" 48.8 1.92"
5.31 lb.in ± 0.885
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
26.7 1.05" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
6 mm 0.236 in spacing CE CB RoHS USR CNR CSA EAC BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES6-4S 1SNK505911R0000 20 3.10
3 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
3 markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
8

Screw clamp terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Fuse Profile aligned with ZS4-R2 and Grey, dark grey ZS4-SF 1SNK506410R0000 50 18.60
ZS4-PE-R2
ZS4-SF ZS4-S-R1 1SNK161079S0201
Disconnect Profile aligned with ZS4-R2 and Grey ZS4-S-R1 1SNK506310R0000 50 13.20
ZS4-PE-R2

Technical data valid for copper conductors only.
