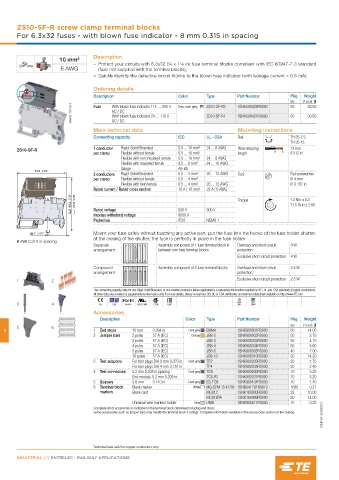

Page 284 - Railways Applications Terminal blocks

ZS10-SF-R screw clamp terminal blocks
For 6.3x32 fuses - with blown fuse indicator - 8 mm 0.315 in spacing

Description
10 mm²
– Protect your circuits with 6.3x32 (¼ x 1¼ in) fuse terminal blocks compliant with IEC 60947-7-3 standard
6 AWG (fuse not supplied with the terminal blocks),
– Quickly identify the defective circuit thanks to the blown fuse indicator (with leakage current < 0.5 mA).

Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
1SNK161073F0014 AC / DC ZS10-SF-R1 1SNK508421R0000 50 30.50
Fuse
30.50
1SNK508422R0000
50
With blown fuse indicator 115 … 250 V
ZS10-SF-R3
Grey, dark grey
With blown fuse indicator 24 … 110 V
AC / DC
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 10 mm² 24 ... 6 AWG Wire stripping 13 mm
ZS10-SF-R
per clamp Flexible without ferrule 0.5 ... 10 mm² length 0.512 in
Flexible with non insulated ferrule 0.5 ... 10 mm² 24 ... 8 AWG
Flexible with insulated ferrule 0.5 ... 6 mm² 24 ... 10 AWG
Gauge A5-B5
74.3 2.93"
2 conductors Rigid: Solid/Stranded 0.5 ... 4 mm² 20 ... 12 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.5 ... 4 mm² Ø 4 mm
Flexible with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG Ø 0.157 in
Rated current / Rated cross section 10 A / 10 mm² 22 A / 6 AWG
85.3 3.36" 77.8 3.06" Torque 1.3 Nm ± 0.3
11.5 lb.in ± 2.65
Rated voltage 630 V 600 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
26.7 1.05" Mount your fuse safely without touching any active part: put the fuse into the hooks of the fuse holder shutter;
at the closing of the shutter, the fuse is perfectly in place in the fuse holder.
8 mm 0.315 in spacing
Separate Assembly composed of 1 fuse terminal block in Overload and short-circuit 4 W
arrangement between non fuse terminal blocks protection
Exclusive short-circuit protection 4 W
Compound Assembly composed of 5 fuse terminal blocks Overload and short-circuit 2.5 W
arrangement protection
Exclusive short-circuit protection 2.5 W
1 2
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
3 4 CE CB RoHS USR CNR CSA EAC BV DNV
Accessories
Description Color Type Part Number Pkg Weight
qty (1 pce) g
5 6
8 1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 Jumper bars 2 poles 57 A (IEC) Orange JB8-2 1SNK908302R0000 50 2.70
3 poles 57 A (IEC) JB8-3 1SNK908303R0000 50 4.10
4 poles 57 A (IEC) JB8-4 1SNK908304R0000 50 5.60
5 poles 57 A (IEC) JB8-5 1SNK908305R0000 40 7.00
10 poles 57 A (IEC) JB8-10 1SNK908310R0000 20 14.20
3 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
4 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
5 Spacers 2.8 mm 0.110 in Dark grey ES-TC8 1SNK900104R0000 10 1.40
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
1SNK161053S0201
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
