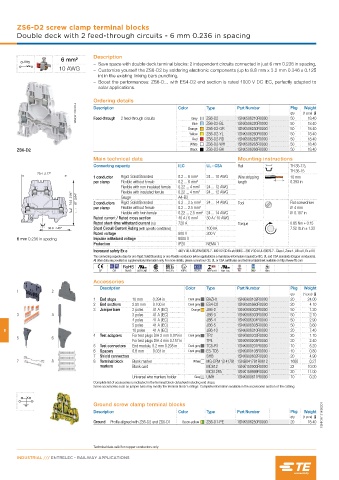

Page 288 - Railways Applications Terminal blocks

ZS6-D2 screw clamp terminal blocks
Double deck with 2 feed-through circuits - 6 mm 0.236 in spacing

Description
6 mm²
– Save space with double deck terminal blocks: 2 independent circuits connected in just 6 mm 0.236 in spacing,
10 AWG – Customize yourself the ZS6-D2 by soldering electronic components (up to 8.8 mm x 3.2 mm 0.346 x 0.125
in) in the existing linking bars punching,
– Boost the performances: ZS6-D... with ES4-D2 end section is rated 1000 V DC IEC, perfectly adapted to
solar applications.

Ordering details
1SNK161010F0014 Description 2 feed-through circuits Color Grey Type Part Number Pkg (1 pce) g
Weight
qty
Feed-through
ZS6-D2
1SNK506210R0000
18.40
50
Blue
1SNK506230R0000
50
Orange ZS6-D2-BL 1SNK506220R0000 50 18.40
18.40
ZS6-D2-OR
Yellow ZS6-D2-YL 1SNK506260R0000 50 18.40
Red ZS6-D2-RD 1SNK506262R0000 50 18.40
White ZS6-D2-WH 1SNK506265R0000 50 18.40
ZS6-D2 Black ZS6-D2-BK 1SNK506266R0000 50 18.40
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
70.4 2.77"
1 conductor Rigid: Solid/Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10 mm
per clamp Flexible without ferrule 0.2 ... 6 mm² length 0.393 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
24 ... 12 AWG
0.22 ... 4 mm²
Flexible with insulated ferrule
74.5 2.94" 67 2.64" 2 conductors Gauge A4-B3 24 ... 14 AWG Tool Flat screwdriver
Rigid: Solid/Stranded
0.2 ... 2.5 mm²
per clamp Flexible without ferrule 0.2 ... 2.5 mm² Ø 4 mm
Flexible with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.157 in
Rated current / Rated cross section 40 A / 6 mm² 30 A / 10 AWG
Rated short-time withstand current (1s) 720 A Torque 0.85 Nm ± 0.15
36.8 1.45" Short Circuit Current Rating (with specific conditions) 100 kA 7.52 lb.in ± 1.33
Rated voltage 800 V 300 V
6 mm 0.236 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
Increased safety Ex e 440 V 40 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 300 V 30 A UL 60079-7 - Class I, Zone 1, AEx e II, Ex e II U
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 2.55 mm 0.100 in Dark grey ES4-D2 1SNK505960R0000 20 4.10
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 4 3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
8 10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
4 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
5 6
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
6 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
7 Shield connectors SHB 1SNK900602R0000 20 4.90
7 8 8 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
Ground screw clamp terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g 1SNK161014S0201
Ground Profile aligned with ZS6-D2 and ZS6-D1 Green-yellow ZS6-D1-PE 1SNK506250R0000 20 18.40

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
