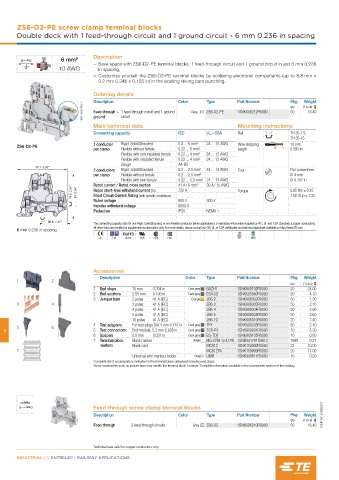

ZS6-D2-PE screw clamp terminal blocks
Double deck with 1 feed-through circuit and 1 ground circuit - 6 mm 0.236 in spacing

Description
6 mm²
– Save space with ZS6-D2-PE terminal blocks: 1 feed-through circuit and 1 ground circuit in just 6 mm 0.236
10 AWG in spacing,
– Customize yourself the ZS6-D2-PE terminal blocks by soldering electronic components (up to 8.8 mm x
3.2 mm 0.346 x 0.125 in) in the existing linking bars punching.

Ordering details Color Type Part Number Pkg Weight
Description
1SNK161061F0014 Feed-through + 1 feed-through circuit and 1 ground Grey ZS6-D2-PE 1SNK506212R0000 qty (1 pce) g
18.40
50
ground
circuit
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10 mm
ZS6-D2-PE
per clamp Flexible without ferrule 0.22 ... 6 mm² length 0.393 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A4-B3
77.1 3.03"
2 conductors Rigid: Solid/Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.2 ... 2.5 mm² Ø 4 mm
Flexible with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.157 in
Rated current / Rated cross section 41 A / 6 mm² 30 A / 10 AWG
74.5 2.94" 67 2.64" Rated short-time withstand current (1s) 720 A Torque 0.85 Nm ± 0.15
7.52 lb.in ± 1.33
Short Circuit Current Rating (with specific conditions)
Rated voltage 800 V 300 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
36.8 1.45"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
6 mm 0.236 in spacing
CE CB RoHS USR CSA EAC BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 2.55 mm 0.100 in Dark grey ES4-D2 1SNK505960R0000 20 4.10
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 4 3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
4 Test adapters For test plugs DIA 4 mm 0.157 in Dark grey TP4 1SNK900205R0000 20 2.40
5 6
8 5 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
6 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
7 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
7 MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Feed-through screw clamp terminal blocks
Description Color Type Part Number Pkg Weight 1SNK161048S0201
qty (1 pce) g
Feed-through 2 feed-through circuits Grey ZS6-D2 1SNK506210R0000 50 18.40

Technical data valid for copper conductors only.
