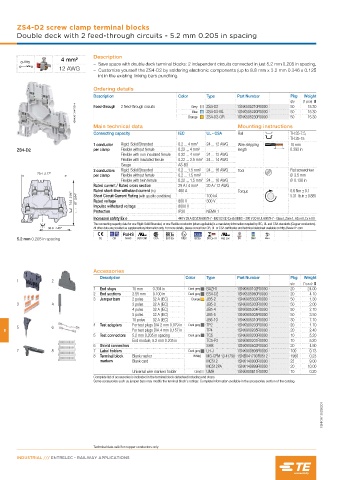

Page 286 - Railways Applications Terminal blocks
P. 286

ZS4-D2 screw clamp terminal blocks
       Double deck with 2 feed-through circuits - 5.2 mm 0.205 in spacing



                                  Description
                      4 mm²
                                     – Save space with double deck terminal blocks: 2 independent circuits connected in just 5.2 mm 0.205 in spacing,
                      12 AWG         – Customize yourself the ZS4-D2 by soldering electronic components (up to 8.8 mm x 3.2 mm 0.346 x 0.125
                                    in) in the existing linking bars punching.

                                  Ordering details
                                  Description                   Color     Type      Part Number        Pkg  Weight
                                                                                                       qty  (1 pce) g
                           1SNK161014F0014                         Orange  ZS4-D2-BL  1SNK505220R0000  50    15.30
                                                                                                       50
                                                                                    1SNK505210R0000
                                            2 feed-through circuits
                                  Feed-through
                                                                          ZS4-D2
                                                                                                             15.30
                                                                    Grey
                                                                    Blue
                                                                                    1SNK505230R0000
                                                                                                       50
                                                                          ZS4-D2-OR
                                                                                                             15.30
                                  Main technical data                                Mounting instructions
                                  Connecting capacity           IEC       UL - CSA   Rail              TH 35-7.5,
                                                                                                       TH 35-15
                                  1 conductor   Rigid: Solid/Stranded  0.2 ... 4 mm²  24 ... 12 AWG  Wire stripping   10 mm
       ZS4-D2                     per clamp  Flexible without ferrule  0.22 ... 4 mm²  length          0.393 in
                                            Flexible with non insulated ferrule  0.22 ... 4 mm²  24 ... 12 AWG
                                            Flexible with insulated ferrule  0.22 ... 2.5 mm² 24 ... 14 AWG
                                            Gauge               A3-B3
                                  2 conductors   Rigid: Solid/Stranded  0.2 ... 1.5 mm²  24 ... 16 AWG  Tool  Flat screwdriver
              70.4  2.77"
                                  per clamp  Flexible without ferrule  0.2 ... 1.5 mm²                 Ø 3.5 mm
                                            Flexible with twin ferrule  0.22 ... 1.5 mm² 24 ... 16 AWG  Ø 0.138 in
                                  Rated current / Rated cross section  29 A / 4 mm²  20 A / 12 AWG
                                  Rated short-time withstand current (1s)  480 A     Torque            0.6 Nm ± 0.1
                          74.5  2.94"  67  2.64"  Short Circuit Current Rating (with specific conditions)  800 V  100 kA  5.31  lb.in ± 0.885
                                  Rated voltage
                                                                          300 V
                                  Impulse withstand voltage     8000 V
                                  Protection                    IP20      NEMA 1
                                  Increased safety Ex e         440 V 29 A IEC/EN 60079-7 - IM2 II 2 GD Ex eb I/II/IIIC – 300 V 20 A UL 60079-7 - Class I, Zone 1, AEx e II, Ex e II U
                                  The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
                  36.8  1.45"     All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
       5.2 mm 0.205 in spacing      CE   CB  RoHS  USR CNR  CSA  EAC Ex  ATEX  IECEx  BR-Ex e II  Haz Loc  BV  DNV  Rina
                                  Accessories
                                    Description                   Color   Type      Part Number        Pkg  Weight
       1           2
                                                                                                       qty  (1 pce) g
                                  1  End stops  10 mm   0.394 in   Dark grey  BAZH1  1SNK900102R0000   20    24.00
                                  2  End sections  2.55 mm   0.100 in  Dark grey  ES4-D2  1SNK505960R0000  20  4.10
                                  3  Jumper bars  2 poles   32 A (IEC)  Orange  JB5-2  1SNK905302R0000  50    1.30
       3           4                           3 poles   32 A (IEC)       JB5-3     1SNK905303R0000    50     2.00
                                               4 poles   32 A (IEC)       JB5-4     1SNK905304R0000    50     2.70
                                               5 poles   32 A (IEC)       JB5-5     1SNK905305R0000    50     3.50
                                               10 poles   32 A (IEC)      JB5-10    1SNK905310R0000    30     7.10
                                  4  Test adapters  For test plugs DIA 2 mm 0.079 in  Dark grey  TP2  1SNK900203R0000  20  1.70
       5           6
  8                                            For test plugs DIA 4 mm 0.157 in  TP4  1SNK900205R0000  20     2.40
                                  5  Test connectors  5.2 mm 0.205 in spacing  Dark grey  TC5  1SNK900200R0000  10  5.20
                                               End module, 5.2 mm 0.205 in  TC5-R1  1SNK900201R0000    10     5.20
                                  6  Shield connectors                    SHB       1SNK900602R0000    20     4.90
       7           8              7  Label holders                 Dark grey  LH-J  1SNK900606R0000    100    0.73
                                  8  Terminal block   Blank marker   White  MG-CPM 13 41790 1SNB041790R0512  1960  0.23
                                    markers    Blank card                 MC512     1SNK140000R0000    22     9.00
                                                                          MC512PA   1SNK149999R0000    20    10.00
                                               Universal wire markers holder  Grey  UMH  1SNK900611R0000  10  0.20
                                  Complete list of accessories is indicated in the terminal block datasheet including end stops.
                                  Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.



                                                                                                                  1SNK161003S0201








                                  Technical data valid for copper conductors only.
       INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
