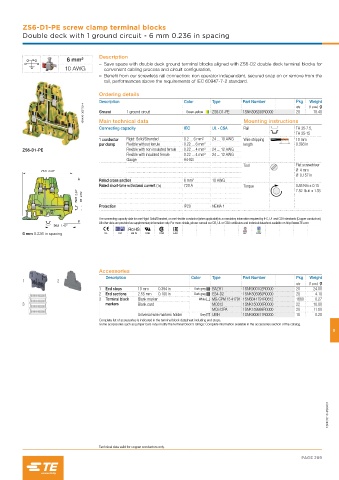

ZS6-D1-PE screw clamp terminal blocks
Double deck with 1 ground circuit - 6 mm 0.236 in spacing

Description
6 mm²
– Save space with double deck ground terminal blocks aligned with ZS6-D2 double deck terminal blocks for
10 AWG convenient cabling process and circuit configuration,
– Benefit from our screwless rail connection: non operator independant, secured snap on or remove from the
rail, performances above the requirements of IEC 60947-7-2 standard.

Ordering details
Weight
Description Color Type Part Number Pkg (1 pce) g
1SNK161062F0014 Ground 1 ground circuit Green-yellow ZS6-D1-PE 1SNK506250R0000 20 18.40
qty
Main technical data
Rail
Connecting capacity IEC UL - CSA Mounting instructions TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10 mm
per clamp Flexible without ferrule 0.22 ... 6 mm² length 0.393 in
ZS6-D1-PE Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A4-B3
Tool Flat screwdriver
77.1 3.03" Ø 4 mm
Ø 0.157 in
Rated cross section 6 mm² 10 AWG
Rated short-time withstand current (1s) 720 A Torque 0.85 Nm ± 0.15
74.5 2.94" 67 2.64" 7.52 lb.in ± 1.33

Protection IP20 NEMA 1

The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
36.8 1.45"
6 mm 0.236 in spacing CE CB RoHS USR CSA EAC BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 2.55 mm 0.100 in Dark grey ES4-D2 1SNK505960R0000 20 4.10
3 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
3 markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
8

1SNK161049S0201

Technical data valid for copper conductors only.
