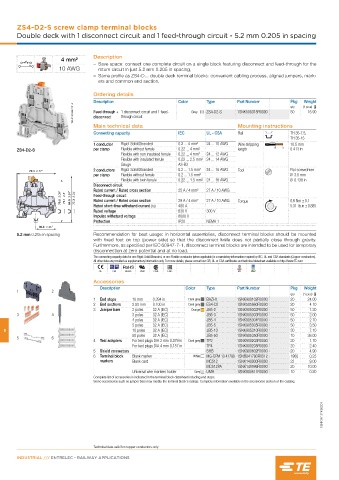

Page 292 - Railways Applications Terminal blocks

ZS4-D2-S screw clamp terminal blocks
Double deck with 1 disconnect circuit and 1 feed-through circuit - 5.2 mm 0.205 in spacing

Description
4 mm²
– Save space: connect one complete circuit on a single block featuring disconnect and feed-through for the
10 AWG return circuit in just 5.2 mm 0.205 in spacing,
– Same profile as ZS4-D... double deck terminal blocks: convenient cabling process, aligned jumpers, mark-
ers and common end section.

Ordering details
Weight
Description Color Type Part Number Pkg (1 pce) g
1SNK161095V0014 Feed-through + 1 disconnect circuit and 1 feed- Grey ZS4-D2-S 1SNK505315R0000 50 15.90
qty
through circuit
disconnect
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
ZS4-D2-S per clamp Flexible without ferrule 0.22 ... 4 mm² length 0.413 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Flexible with insulated ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG
Gauge A3-B3
70.4 2.77" 2 conductors Rigid: Solid/Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.2 ... 1.5 mm² Ø 3.5 mm
Flexible with twin ferrule 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
Disconnect circuit
Rated current / Rated cross section 25 A / 4 mm² 27 A / 10 AWG
78.6 3.09" 71.1 2.8" 84.8 3.34" 77.3 3.04" Feed-through circuit 29 A / 4 mm² 27 A / 10 AWG Torque 0.6 Nm ± 0.1
Rated current / Rated cross section
Rated short-time withstand current (1s) 480 A 5.31 lb.in ± 0.885
Rated voltage 630 V 300 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
36.8 1.45"
5.2 mm 0.205 in spacing Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
with fixed foot on top (power side) so that the disconnect knife does not partially close through gravity.
Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
disconnection at zero potential and at no load.
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CSA EAC BV DNV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 End sections 2.55 mm 0.100 in Dark grey ES4-D2 1SNK505960R0000 20 4.10
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
8 10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 Shield connectors SHB 1SNK900602R0000 20 4.90
6 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161074S0201

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
